Driver Side Seat Belt Warning Light Does Not Operate

METER: METER / GAUGE SYSTEM: Driver Side Seat Belt Warning Light does not Operate

Driver Side Seat Belt Warning Light does not Operate

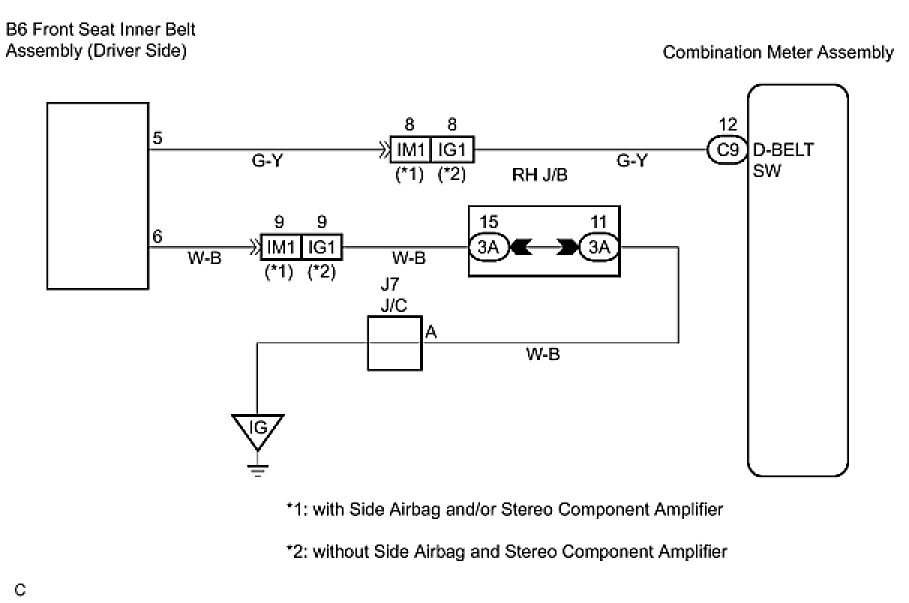

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)





(a) Disconnect the B6 connector from the front seat inner belt assembly (Driver side).
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





NG -- REPLACE FRONT SEAT INNER BELT ASSEMBLY (DRIVER SIDE)
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (COMBINATION METER - FRONT SEAT INNER BELT ASSEMBLY)





(a) Disconnect the C9 and B6 connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE COMBINATION METER ASSEMBLY
