Home >> Toyota >> 2008 >> Corolla L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Locations >> Connector Locations

Connector Locations

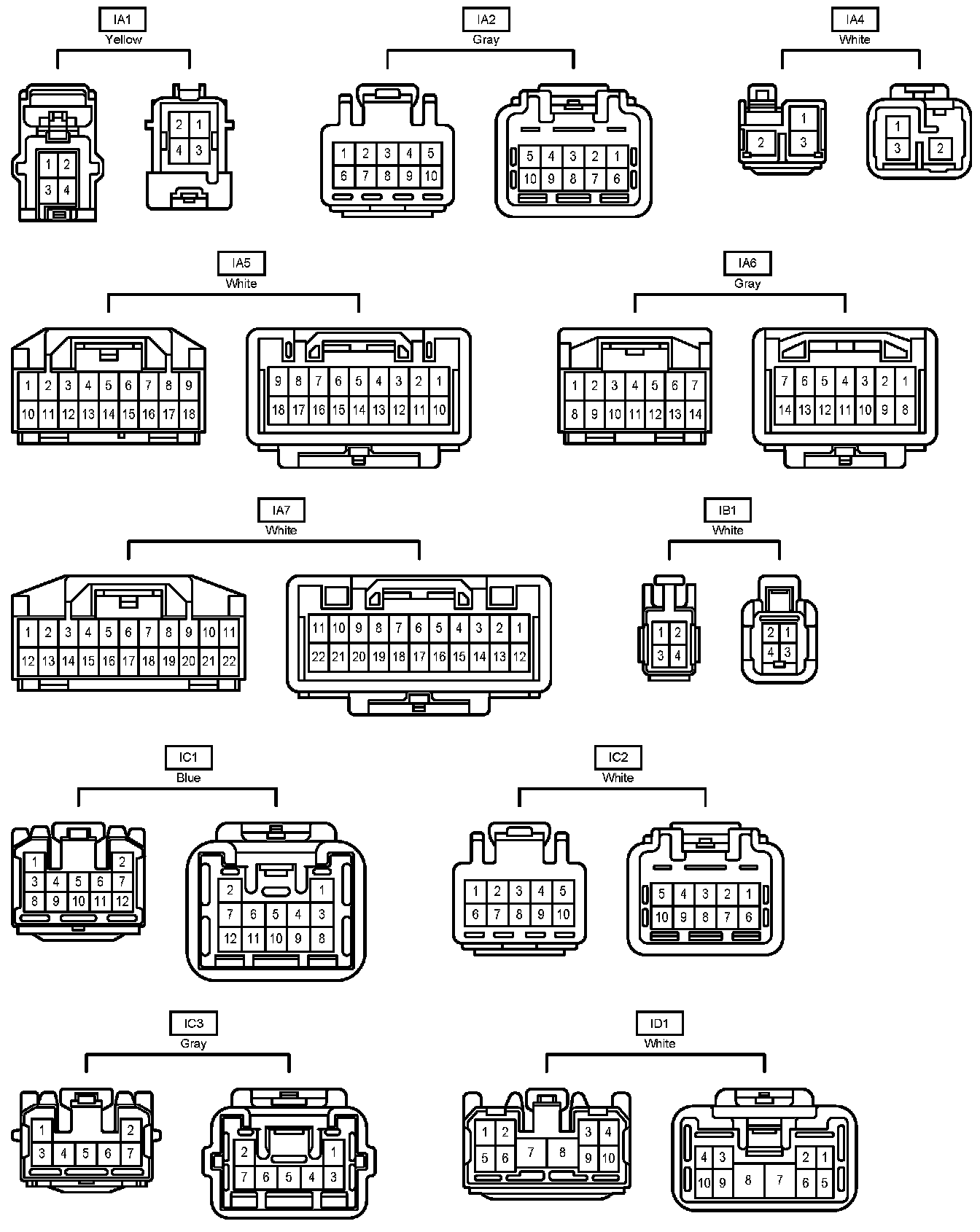

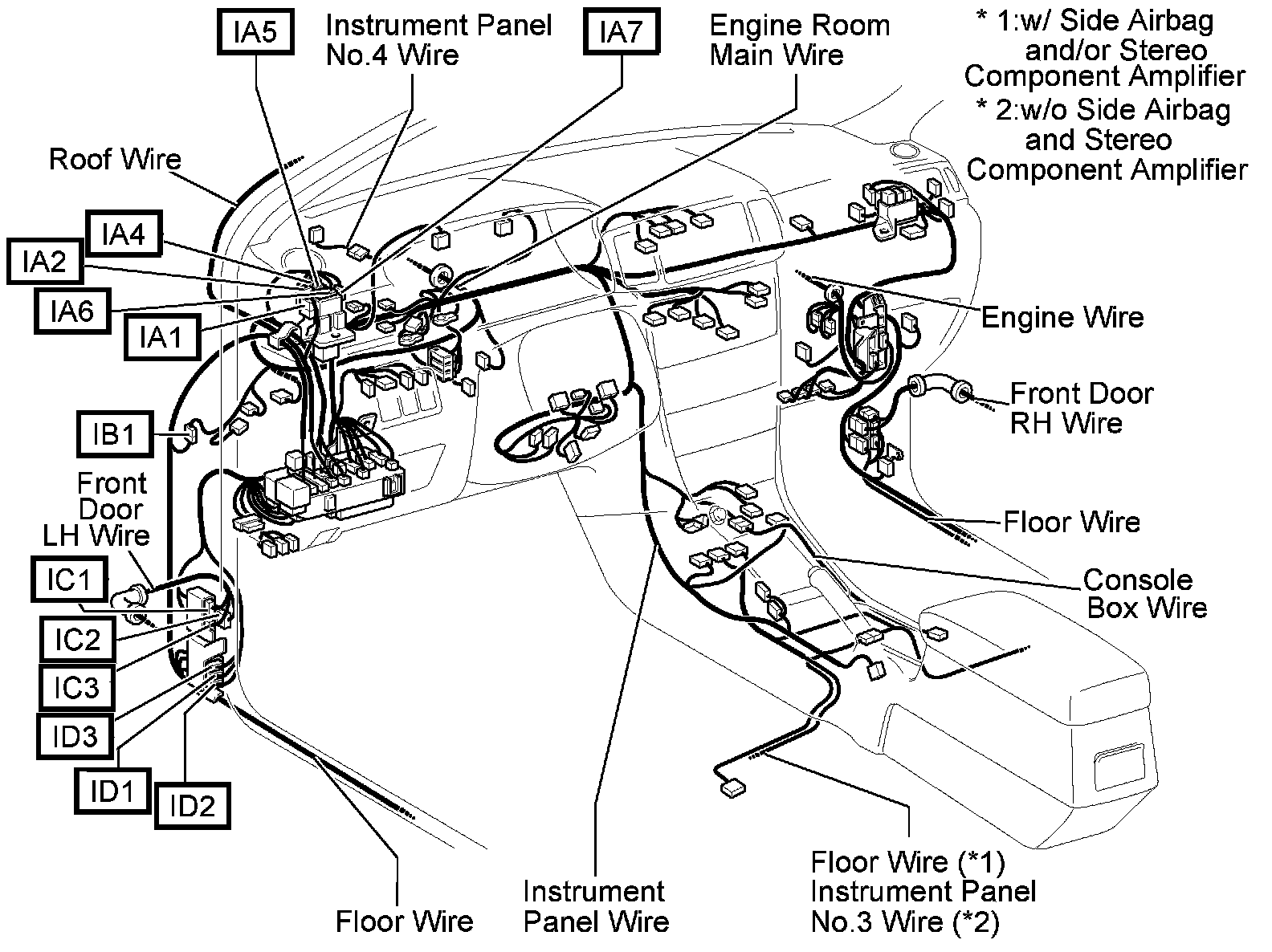

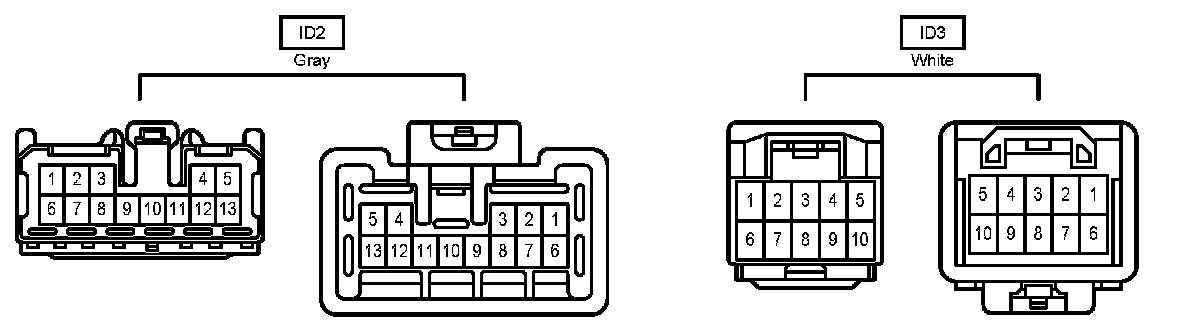

IA1 - ID2:



Connector Views:



Connector Views:

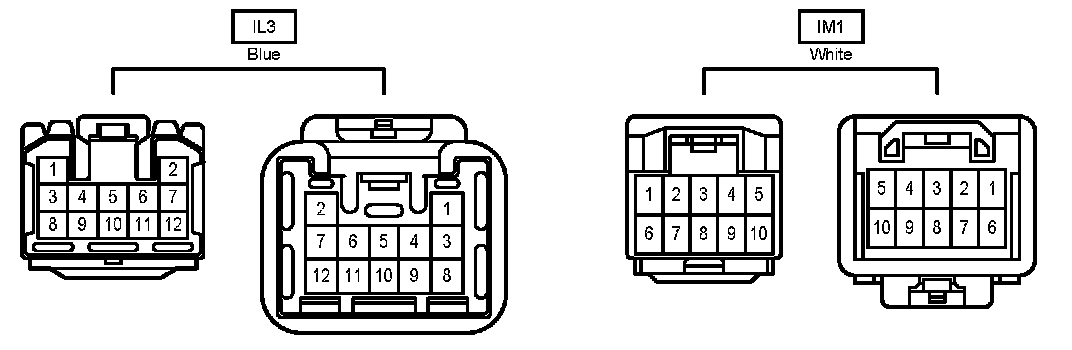

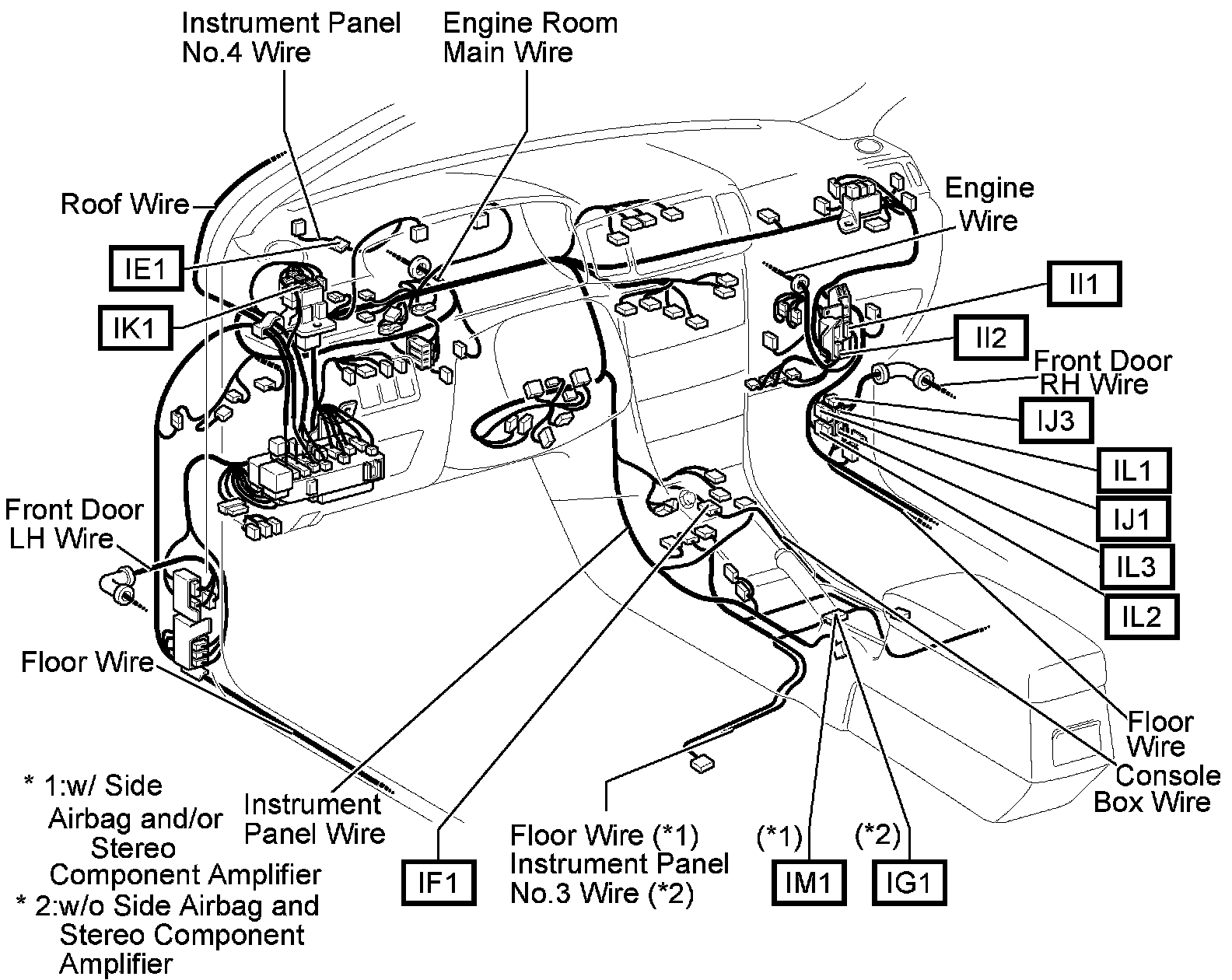

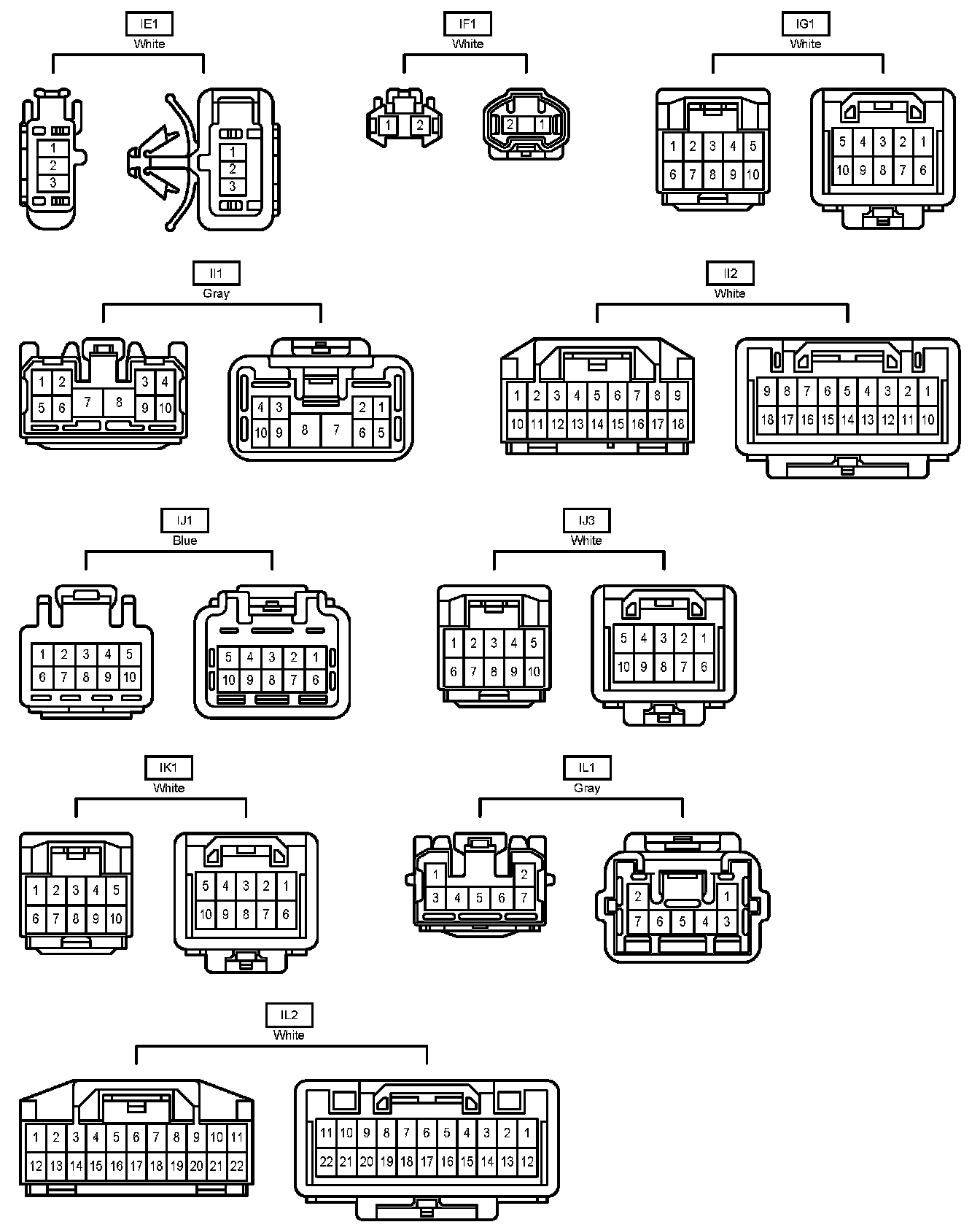

IE1 - IM1:



Connector Views:



Connector Views:

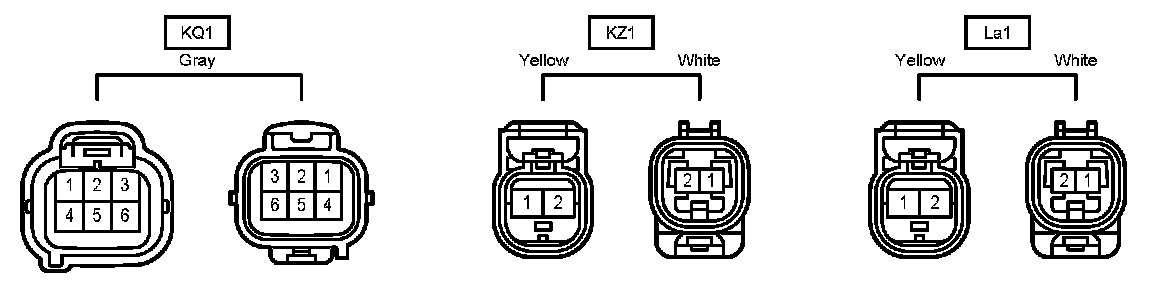

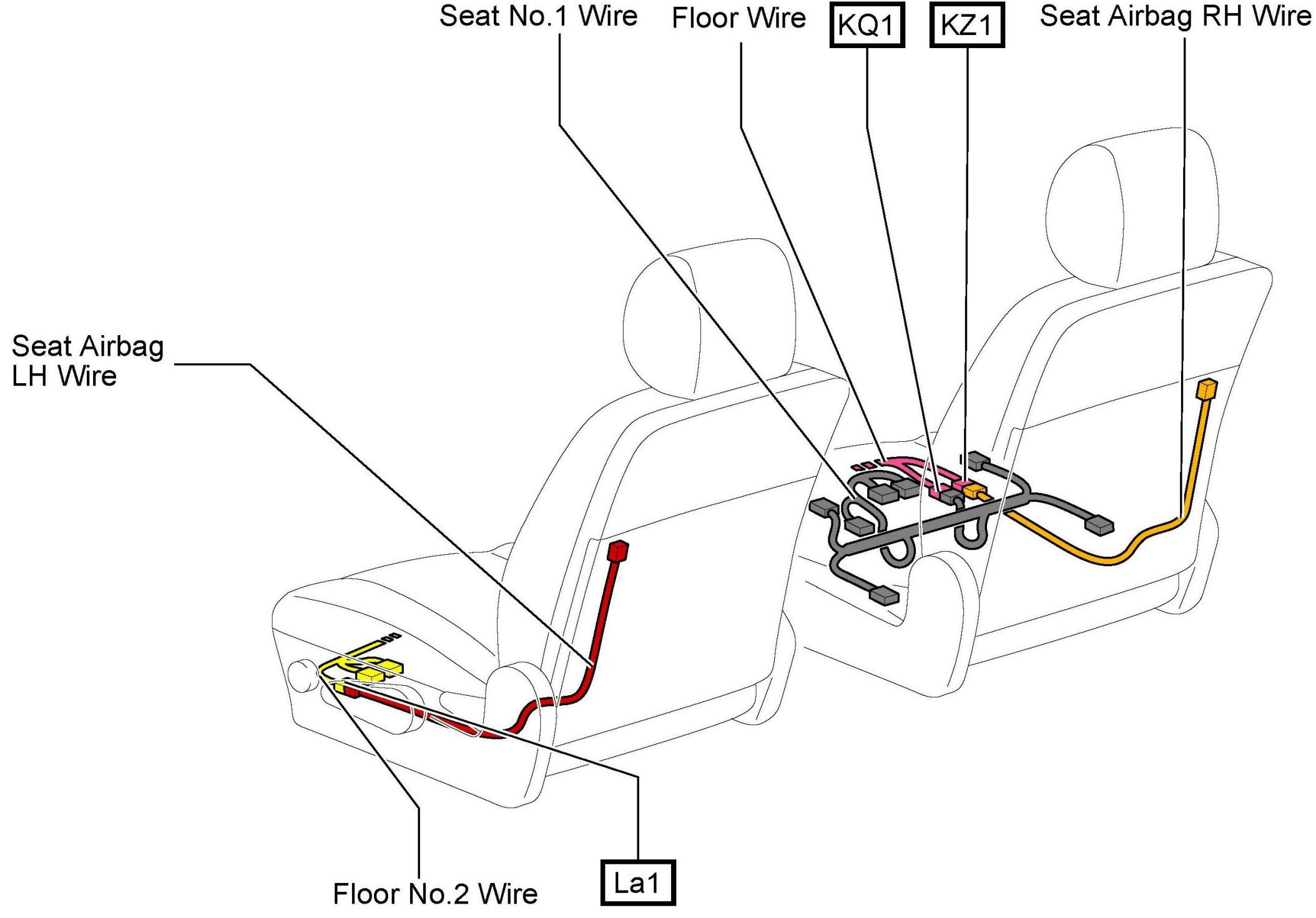

KQ1 - LA1:



Connector Views:
