Engine Temperature Sensor: Testing and Inspection

1ZZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION

INSPECTION

1. INSPECT E.F.I. ENGINE COOLANT TEMPERATURE SENSOR





(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance between the terminal.

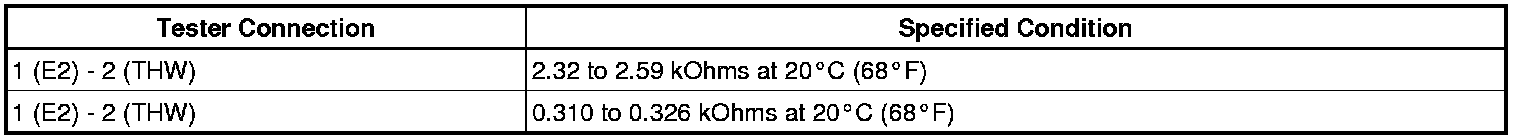

Resistance:





NOTE: If checking the engine coolant temperature sensor in water, be careful not to allow water to intrude into the terminals. After checking, wipe up water on the engine coolant temperature sensor.

If the result is not as specified, replace the engine coolant temperature sensor.
