Starting System: Locations

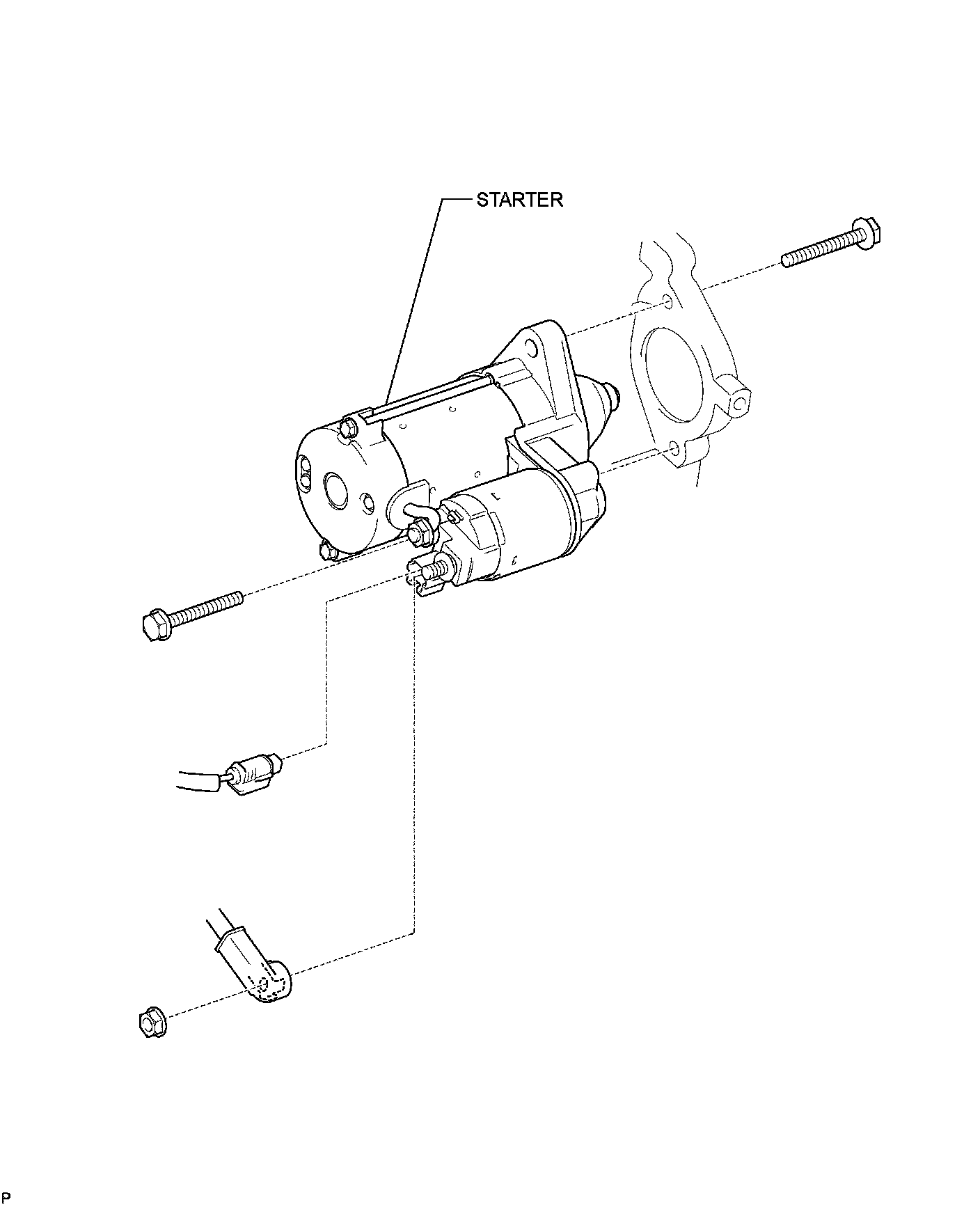

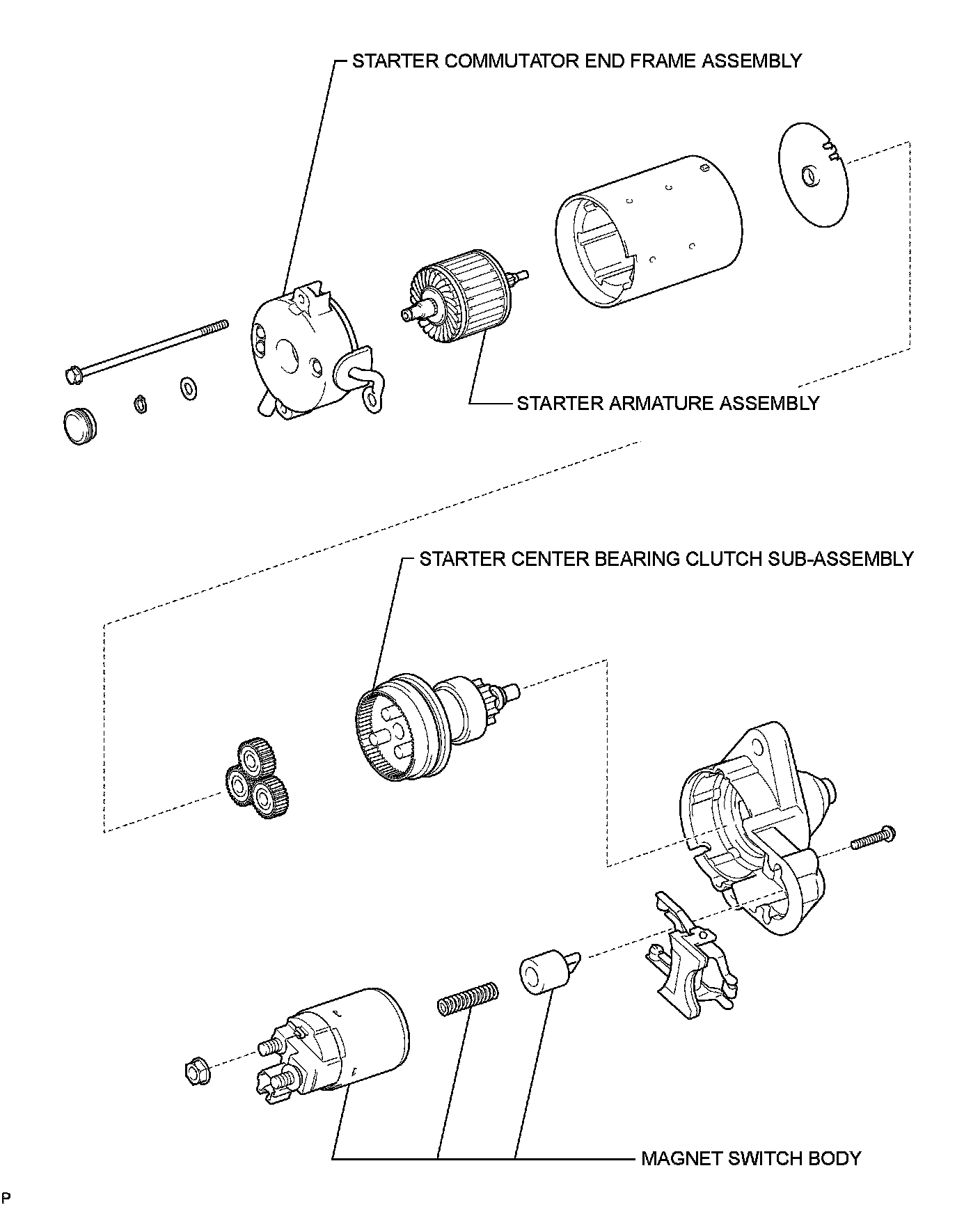

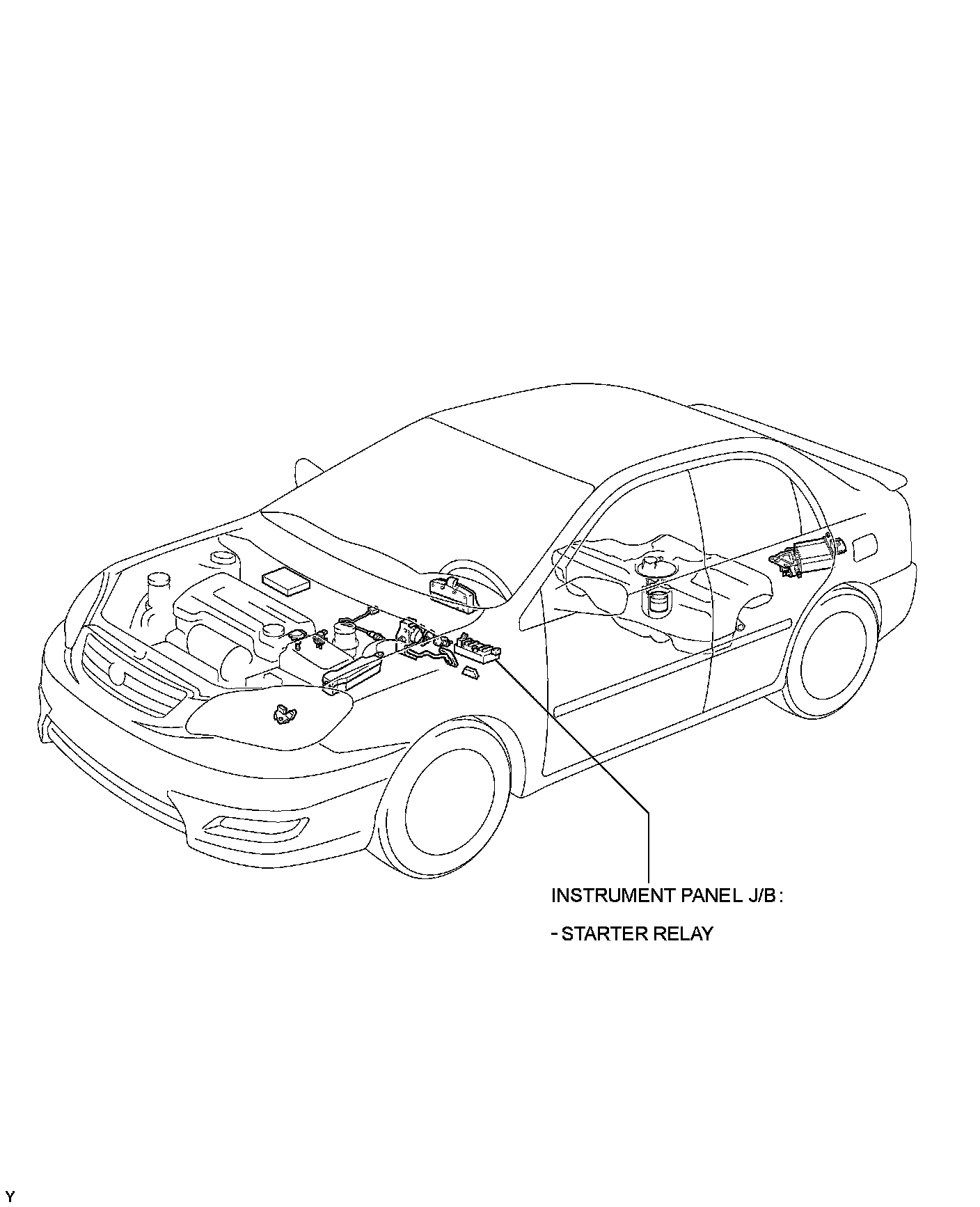

1ZZ-FE STARTING: STARTING SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
