Disassembly
AIR CONDITIONING: INTEGRATION CONTROL AND PANEL: DISASSEMBLYDISASSEMBLY 1.
REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY

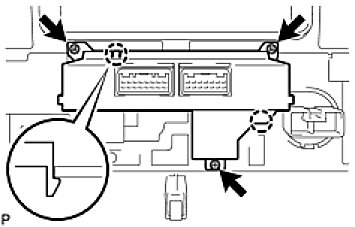

(a)
Remove the 3 screws.
(b)
Disengage the 2 claws and remove the rear panel.

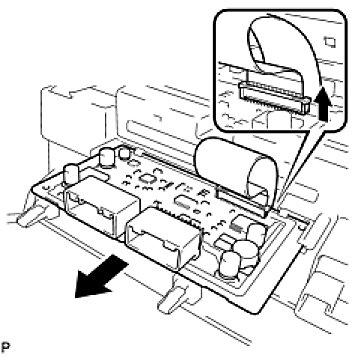

(c)
Disengage the lock of the connector and disconnect the cable.
(d)
Remove the air conditioner amplifier assembly.
