Installation

1GR-FE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

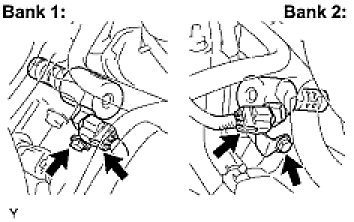

(a) Install the 2 camshaft timing oil control valves with the 2 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
(b) Connect the 2 connectors.
2. INSTALL INTAKE AIR SURGE TANK Installation

3. INSTALL NO. 2 SURGE TANK STAY Installation

4. INSTALL NO. 1 SURGE TANK STAY Installation

5. INSTALL OIL BAFFLE PLATE Installation

6. INSTALL THROTTLE BODY BRACKET Installation

7. INSTALL AIR CLEANER ASSEMBLY Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
9. ADD ENGINE COOLANT Service and Repair

10. CHECK FOR ENGINE COOLANT LEAK Service and Repair

11. INSTALL V-BANK COVER Installation
