Power Trunk / Liftgate Control Module: Testing and Inspection

WINDSHIELD / WINDOWGLASS: GLASS HATCH OPENER SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK BACK DOOR ECU

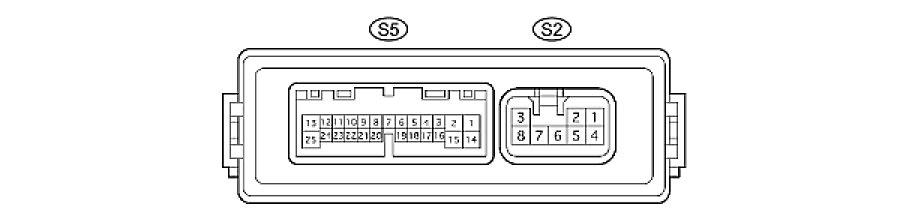

(a) Measure the voltages of the wire harness side connectors.

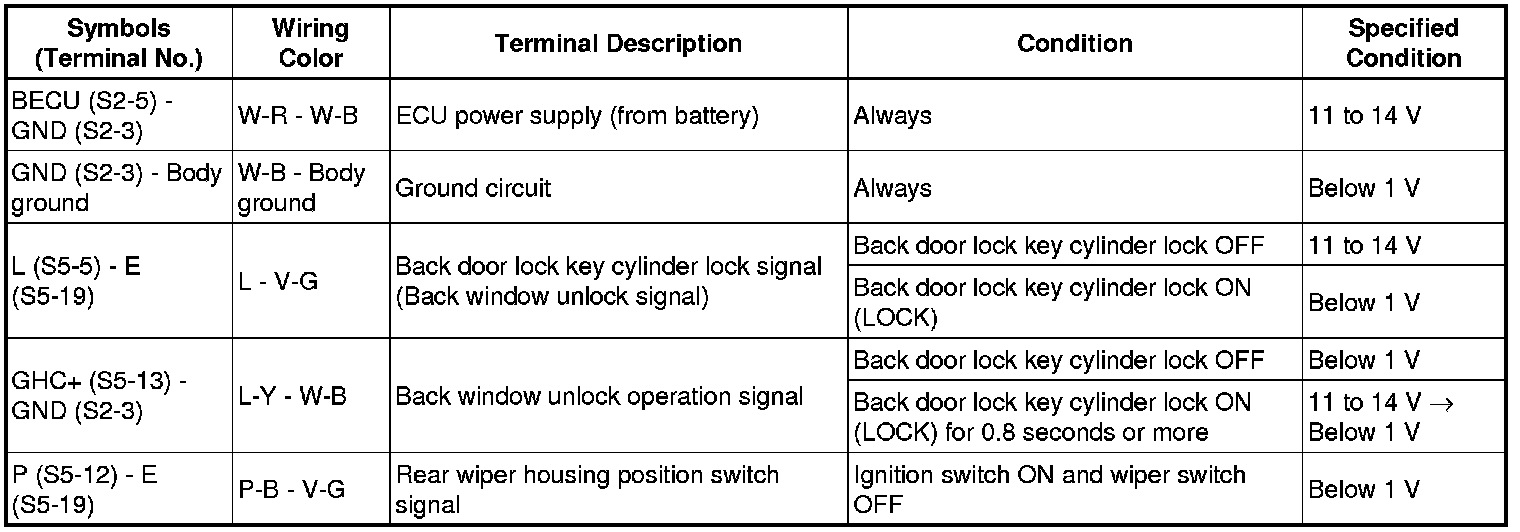

Standard voltage:





If the result is not as specified, there may be a malfunction on the wire harness side.
