Specifications
>>
Mechanical Specifications
>>
Alignment
Alignment

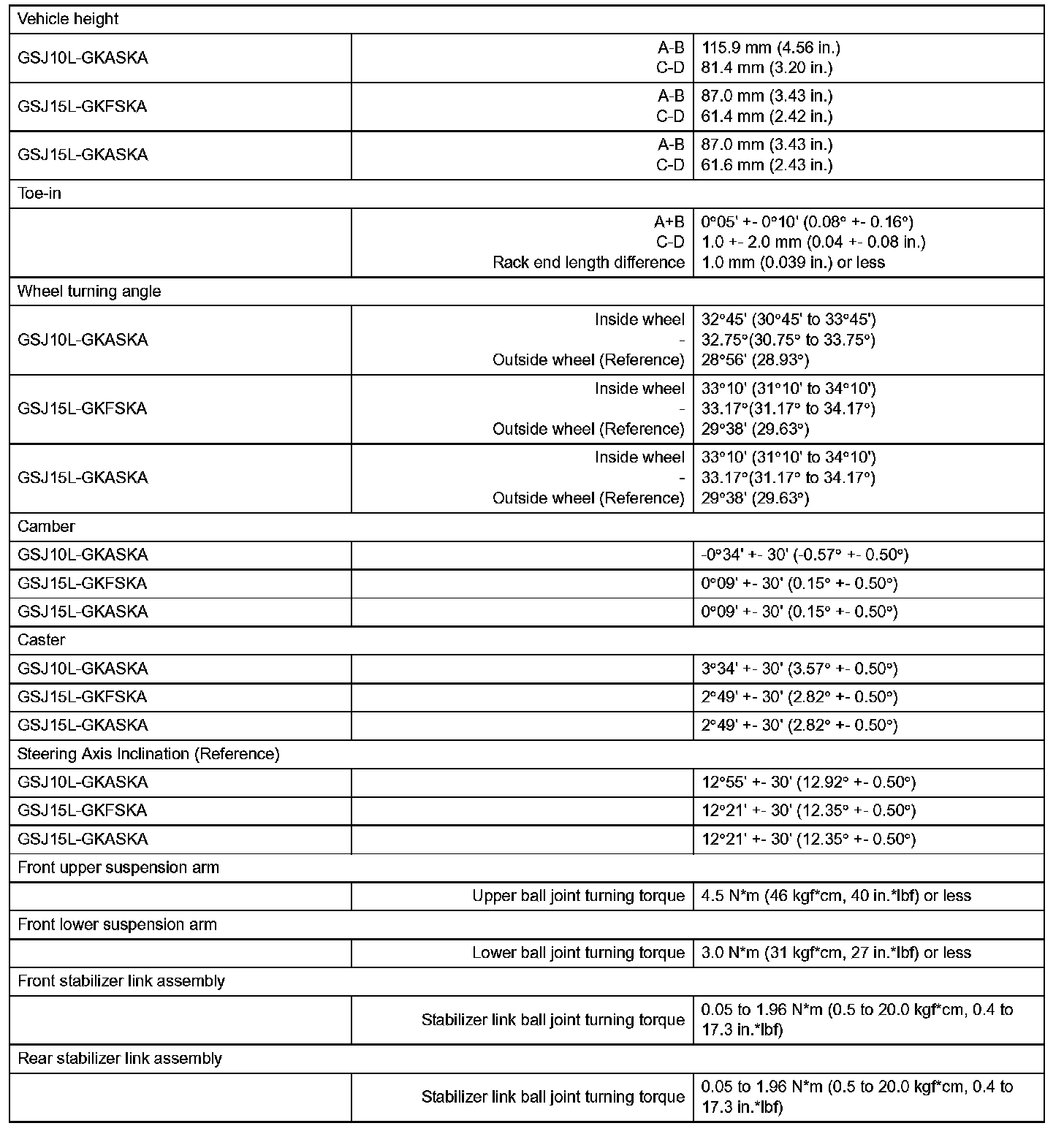

Wheel Alignment Specifications
Suspension Service Data:

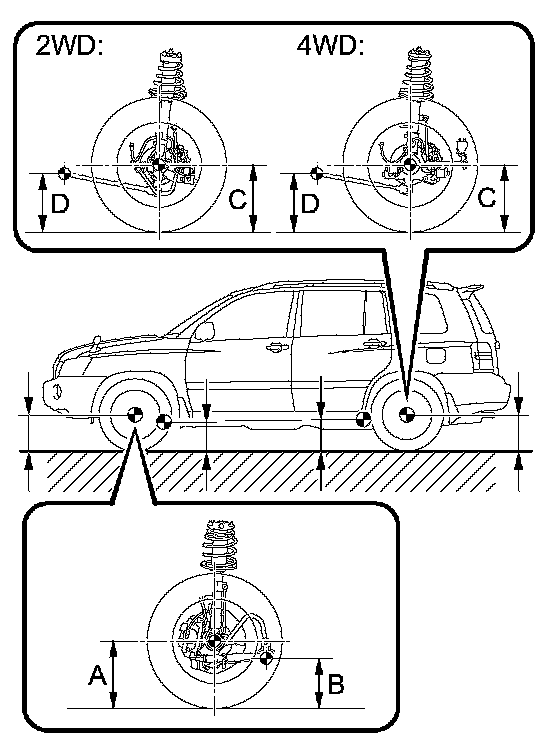

Vehicle Height:
Toe-in:
