Installation

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSTALLATION

INSTALLATION

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

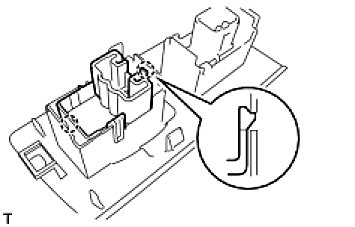

(a) Engage the 2 claws and install the power window regulator switch.
2. INSTALL FRONT ARMREST BASE UPPER PANEL Reassembly

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
