Cruise Control Switch: Testing and Inspection

CRUISE CONTROL MAIN SWITCH:

INSPECTION

1. INSPECT CRUISE CONTROL MAIN SWITCH





(a) Measure the resistance and check the results in accordance with the value(s) in the table below.

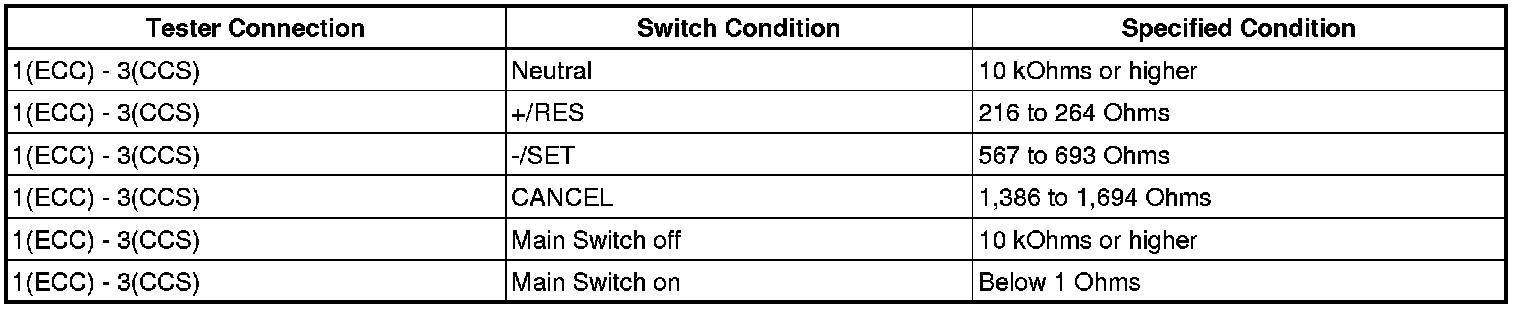

Standard resistance:





If the result is not as specified, replace the cruise control main switch.
