Control Module, Transfer Case
Control Module, Transfer Case

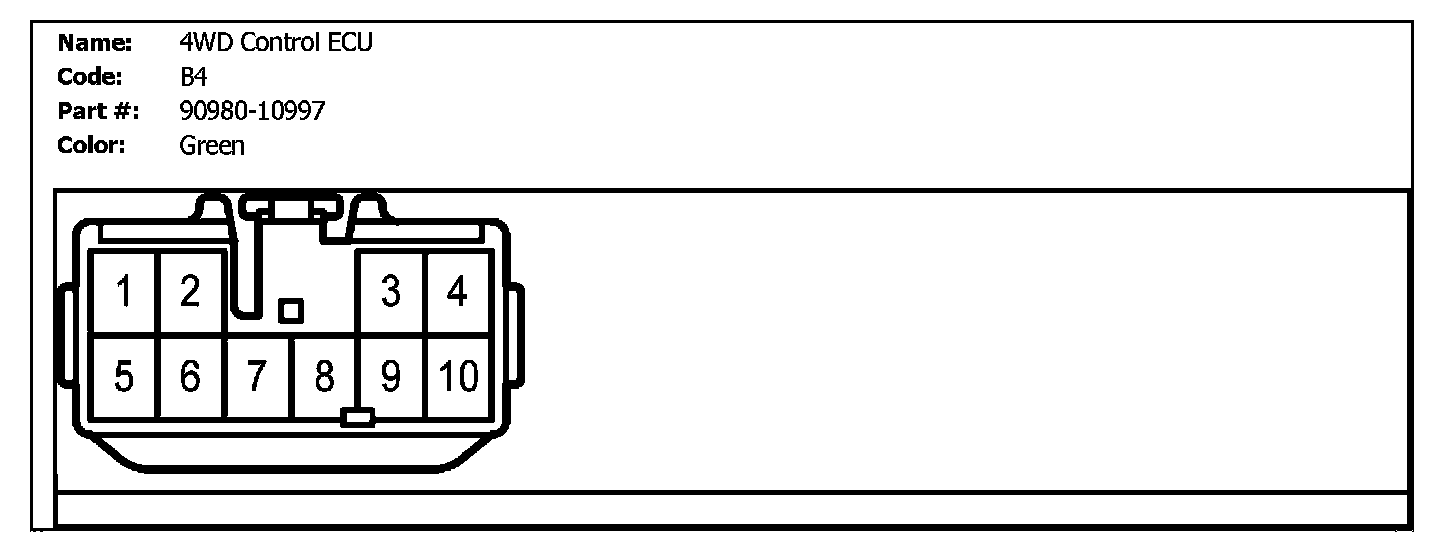

B4 (4WD Control ECU):

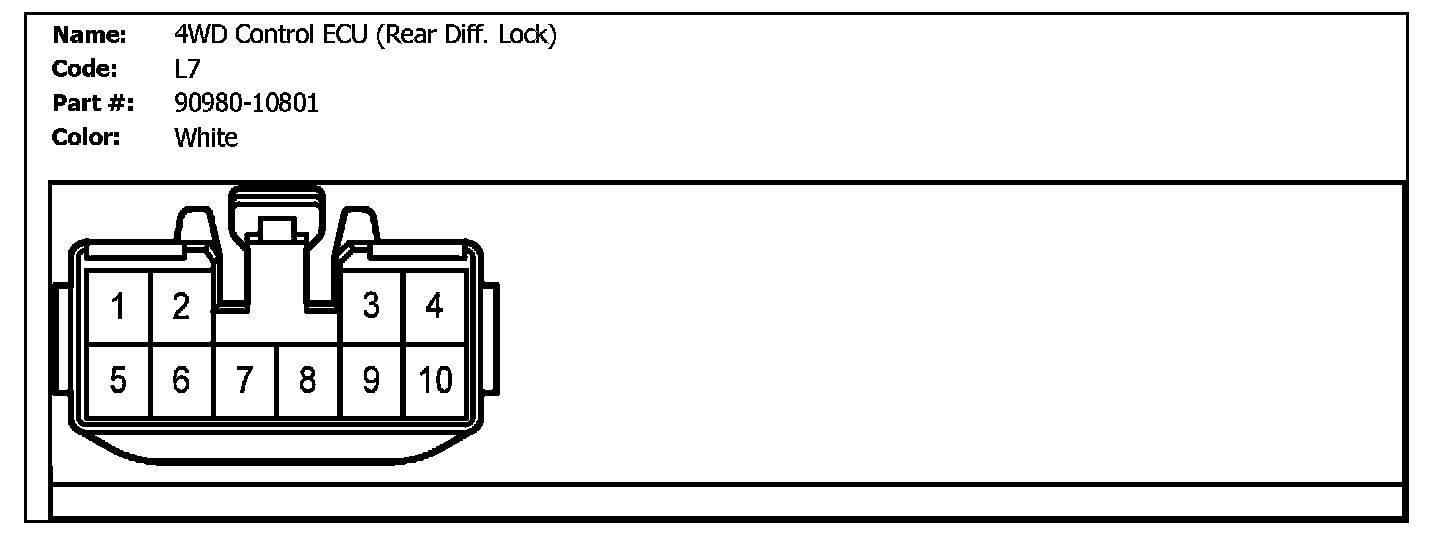

L7 (4WD Control ECU (Rear Diff. Lock)):
