Power Window Switch
Power Window Switch

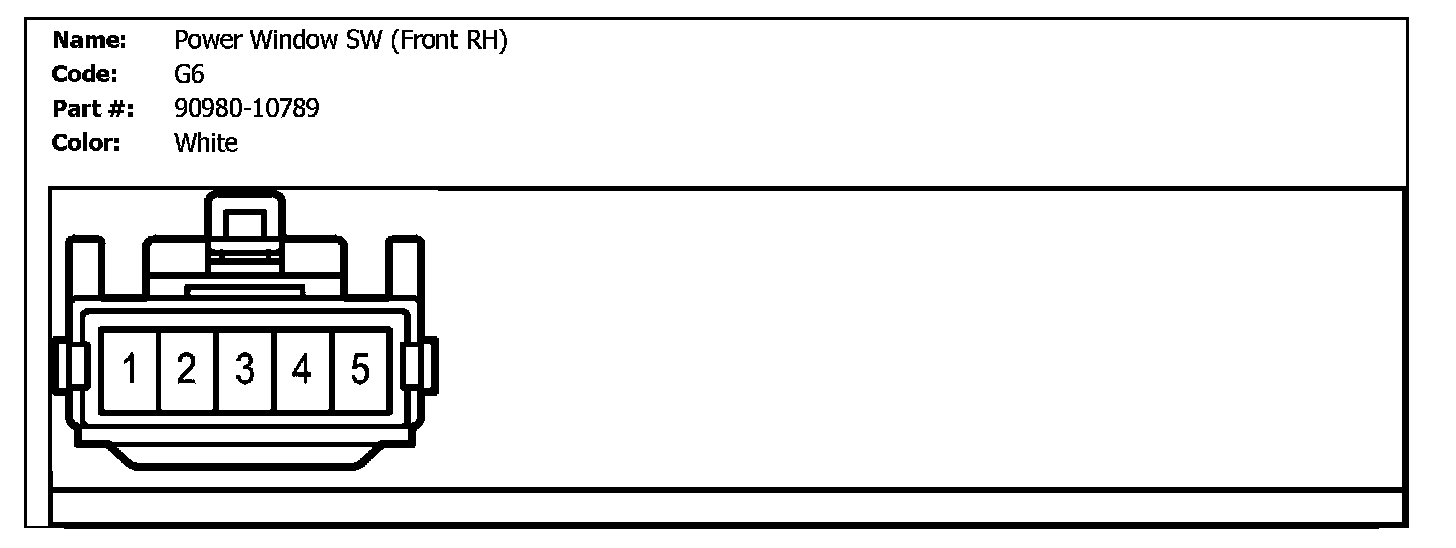

G6 (Power Window SW (Front RH)):

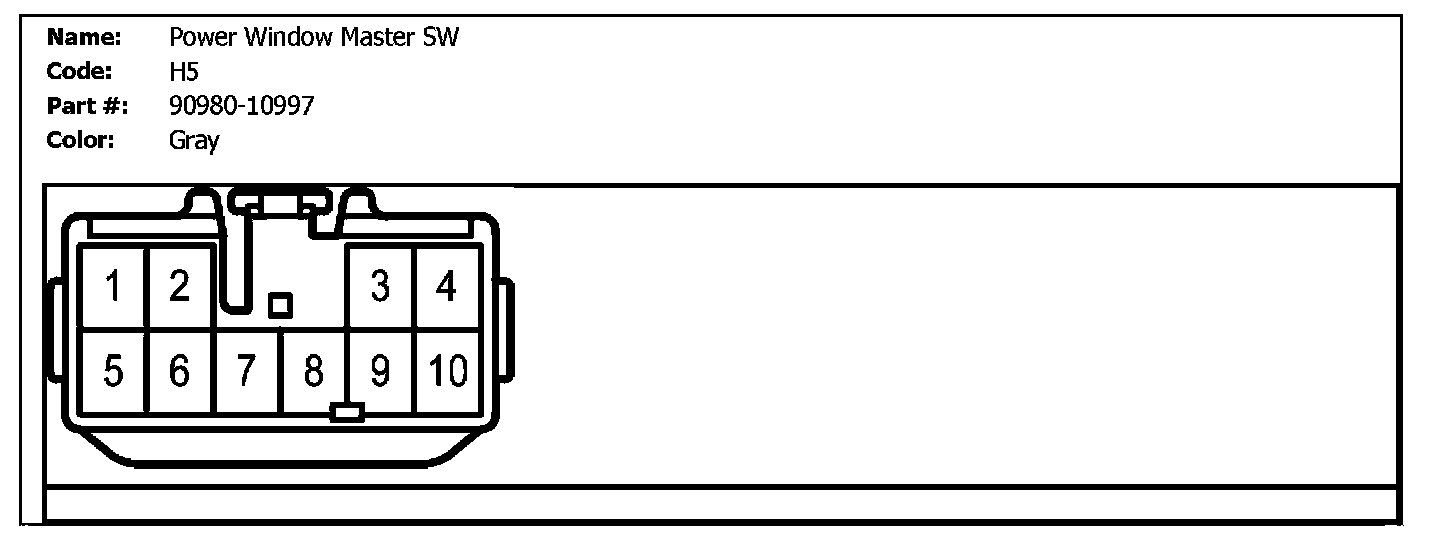

H5 (Power Window Master SW):
