1GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE
Service Precautions
2. DRAIN ENGINE COOLANT Service and Repair

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
4. REMOVE V-BANK COVER Removal

5. REMOVE AIR CLEANER ASSEMBLY Removal

6. REMOVE THROTTLE BODY BRACKET Removal

7. REMOVE OIL BAFFLE PLATE Removal

8. REMOVE NO. 1 SURGE TANK STAY Removal

9. REMOVE NO. 2 SURGE TANK STAY Removal

10. REMOVE INTAKE AIR SURGE TANK Removal

11. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY Removal







12. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

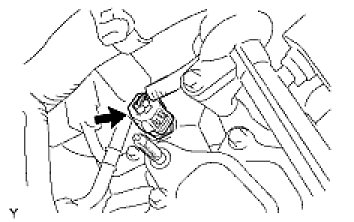

(a) Disconnect the connector.
(b) Using a 19 mm deep socket wrench, remove the water temperature sensor and gasket.
