Service Data








SERVICE SPECIFICATIONS: A750F AUTOMATIC TRANSMISSION: SERVICE DATA

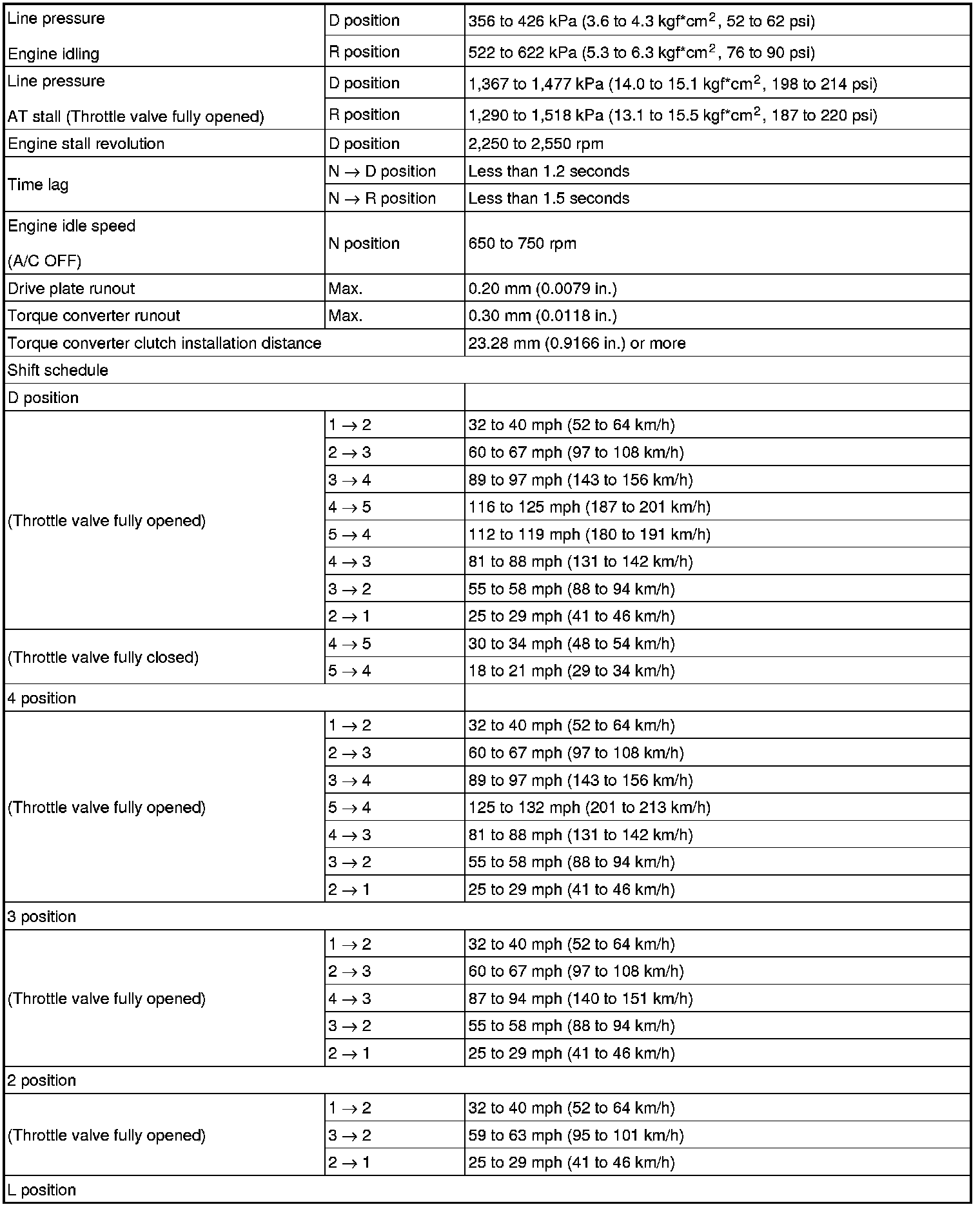

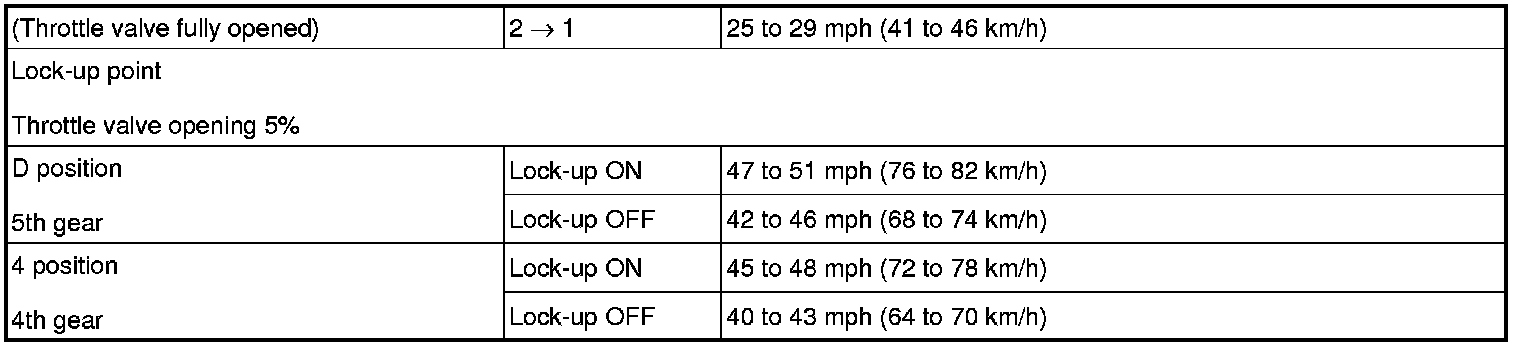

SERVICE DATA

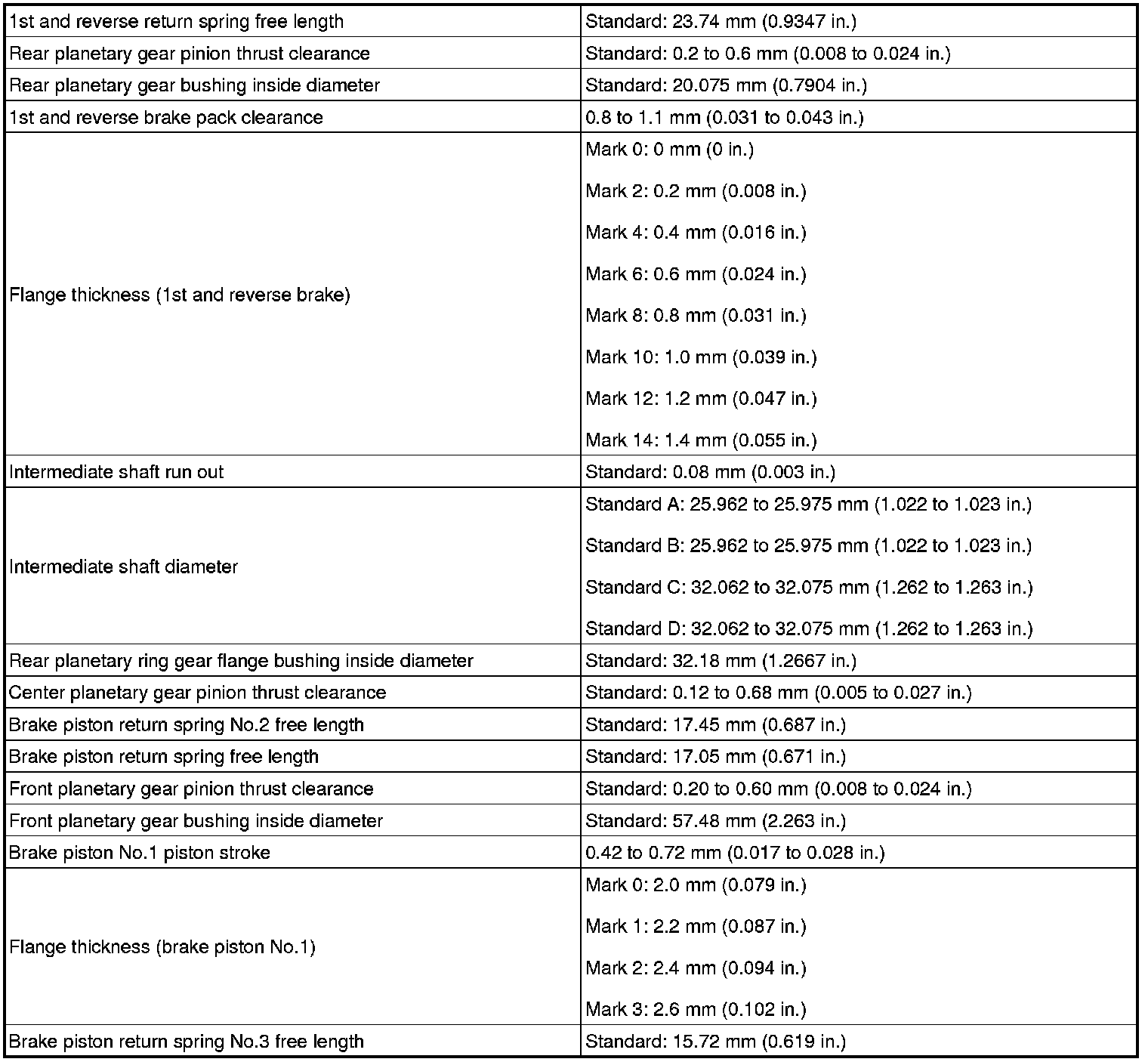

AUTOMATIC TRANSMISSION UNIT

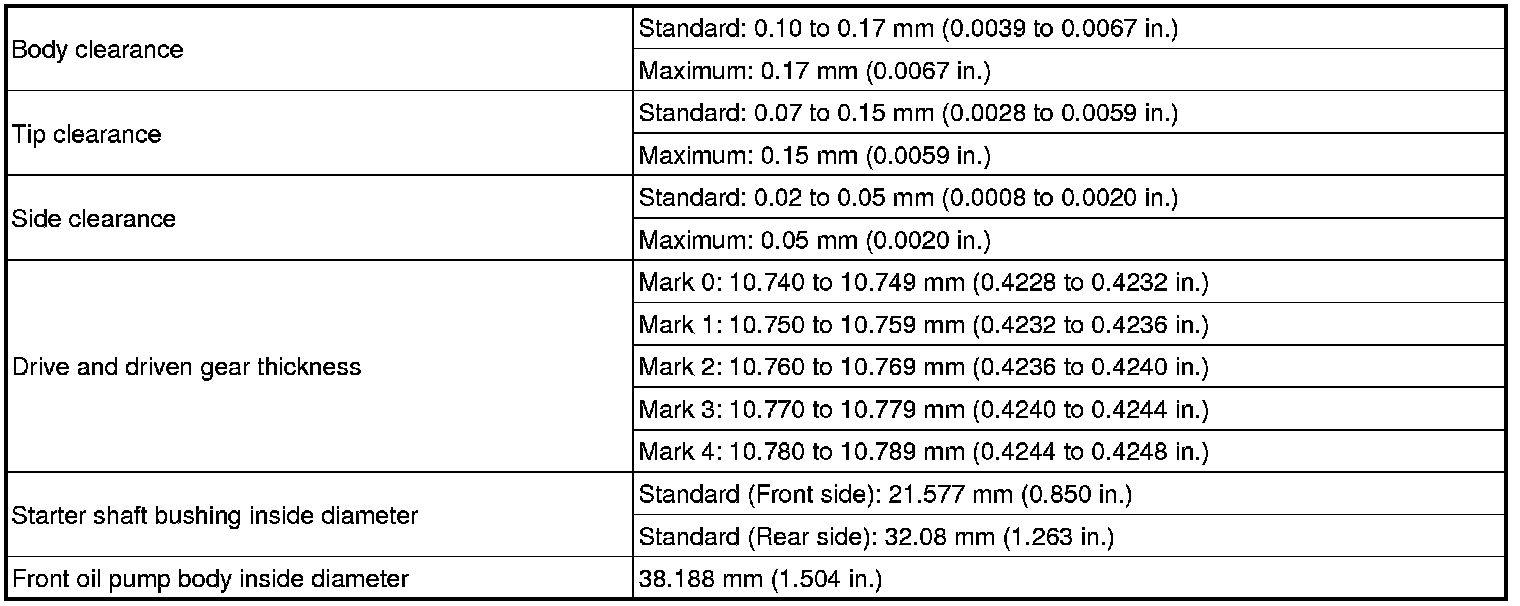

OIL PUMP

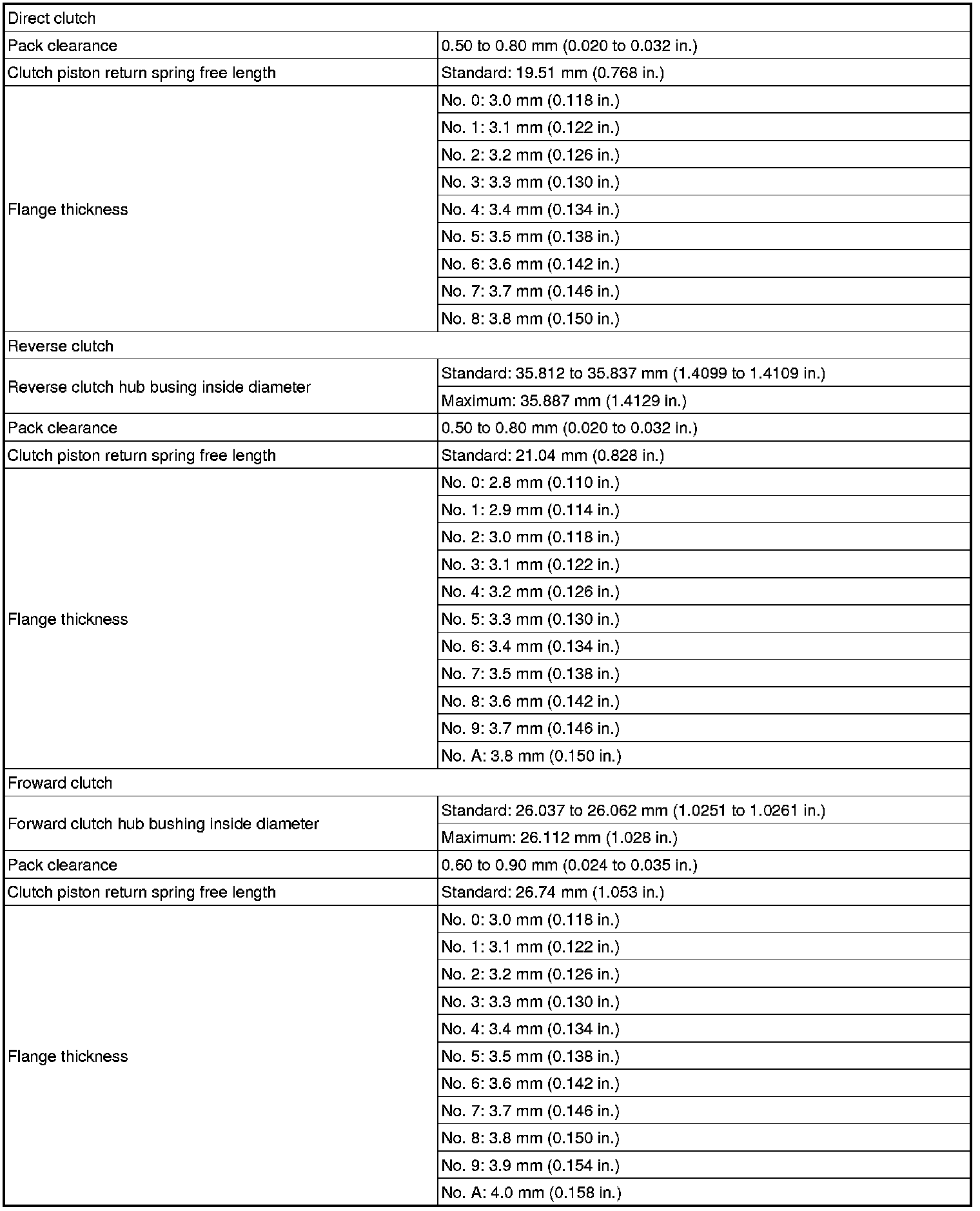

CLUTCH DRUM AND INPUT SHAFT

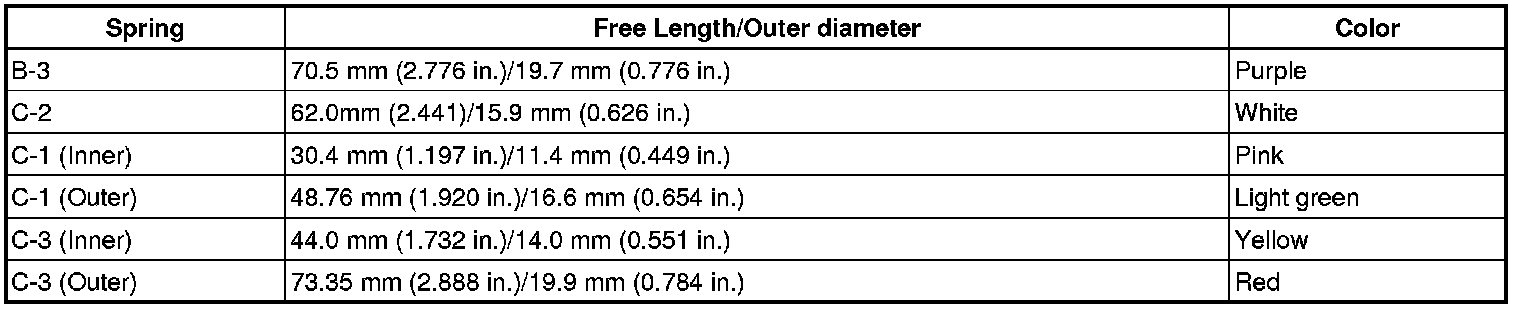

ACCUMULATOR
