Alignment
SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA
SERVICE DATA

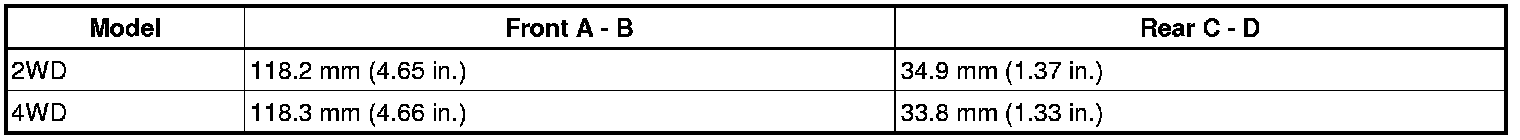

Vehicle Height (unloaded vehicle):

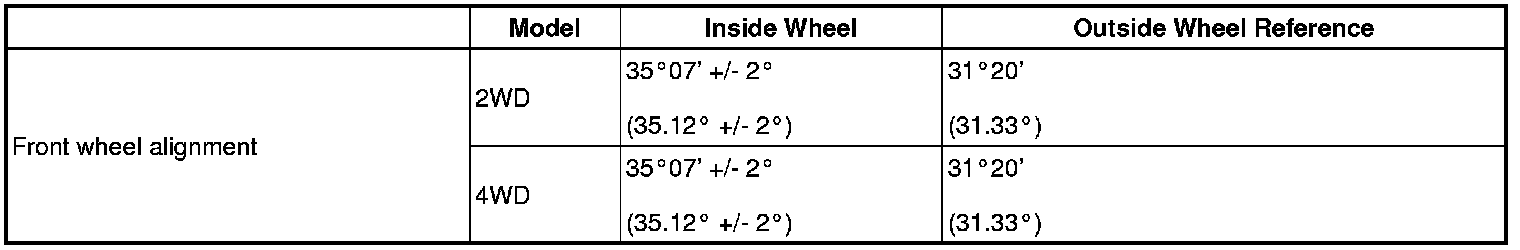

Wheel turning Angle (unloaded vehicle):

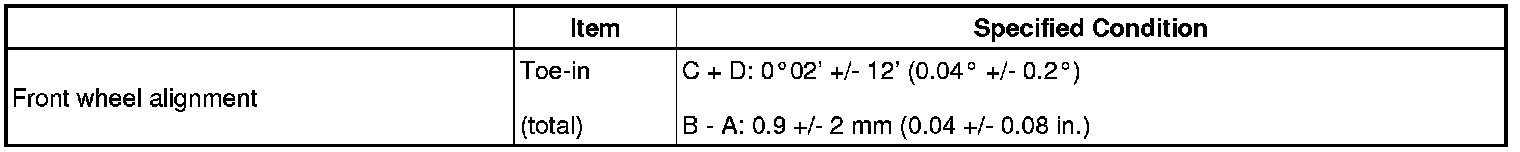

Toe-in:
Camber (unloaded vehicle):

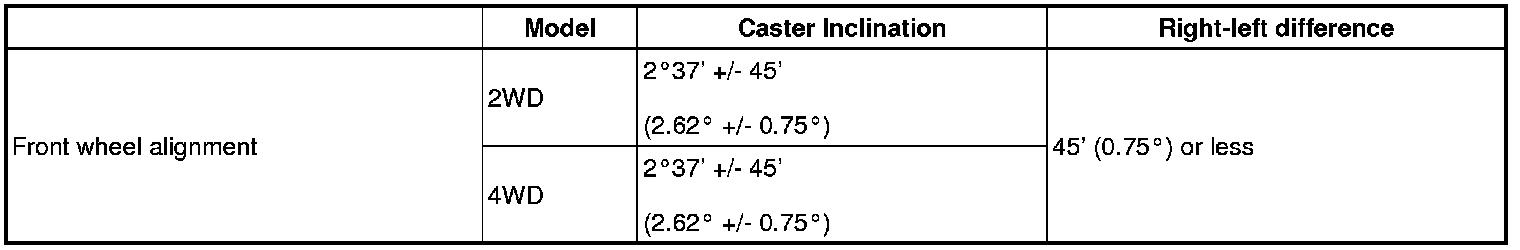

Caster (unloaded vehicle):

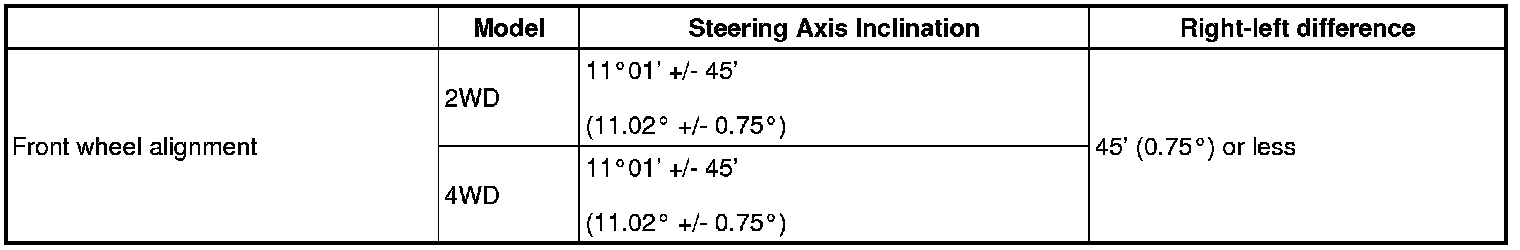

Steering Axis Inclination (unloaded vehicle):

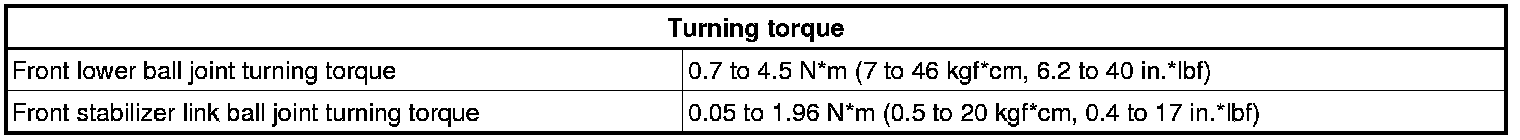

Turning torque:

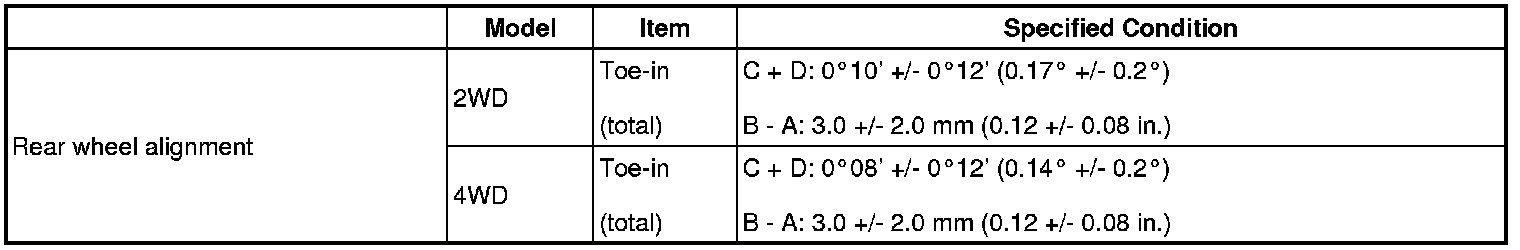

Toe-in:

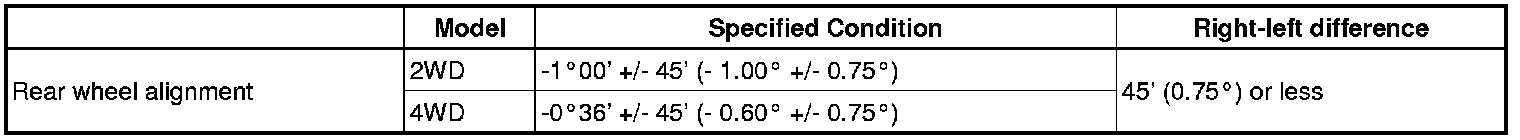

Camber:
Turning torque:
