Torque Specifications








SERVICE SPECIFICATIONS: 2GR-FE COOLING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

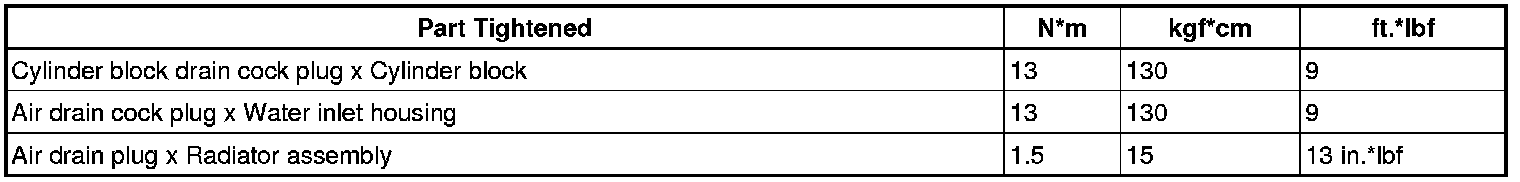

COOLANT:






WATER PUMP:






THERMOSTAT:

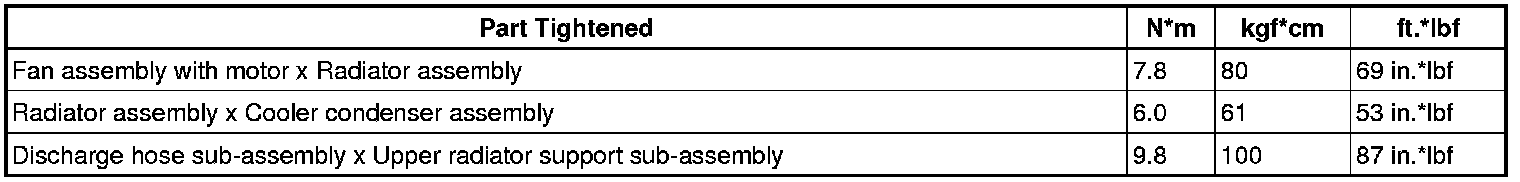

COOLING FAN MOTOR:






COOLING FAN ECU:






RADIATOR:
