Oil Pan, Engine

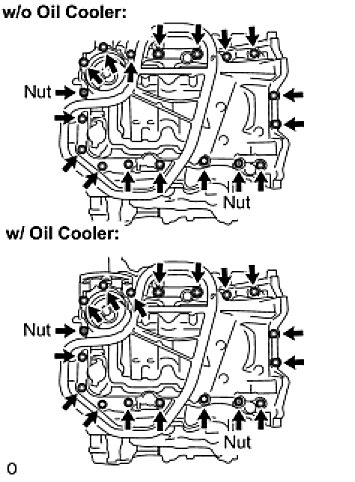

OIL PAN SUB-ASSEMBLY





Bolt A:
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

Except Bolt A:
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)

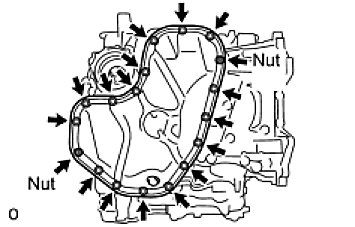

NO. 2 OIL PAN SUB-ASSEMBLY





Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
