Cylinder Head

CYLINDER HEAD SUB-ASSEMBLY RH

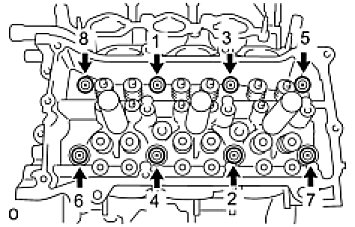

Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 8 cylinder head bolts with the plate washers in several steps and in the sequence shown in the illustration.
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)

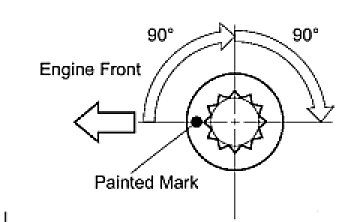

Tighten the cylinder head bolts another 90°.
Tighten the cylinder head bolts an additional 90°.


CYLINDER HEAD SUB-ASSEMBLY LH





Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 8
cylinder head bolts with the plate washers in several steps in the sequence shown in the illustration.
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)






Tighten the cylinder head bolts another 90°.
Tighten the cylinder head bolts an additional 90°.
