Oil Pump

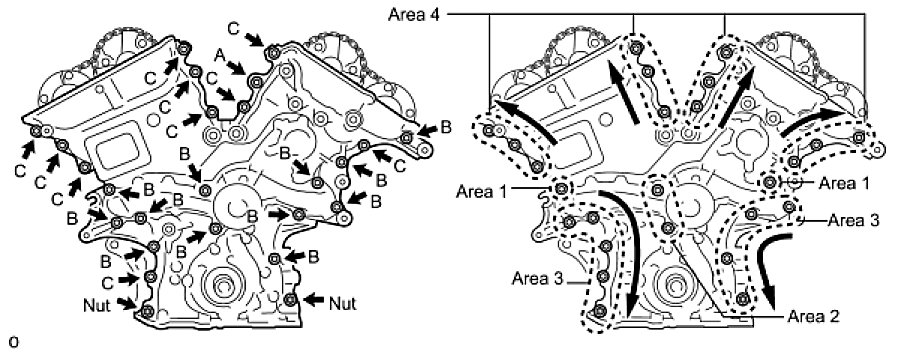

OIL PUMPTemporarily tighten the timing chain cover with the 23 bolts and 2 nuts.

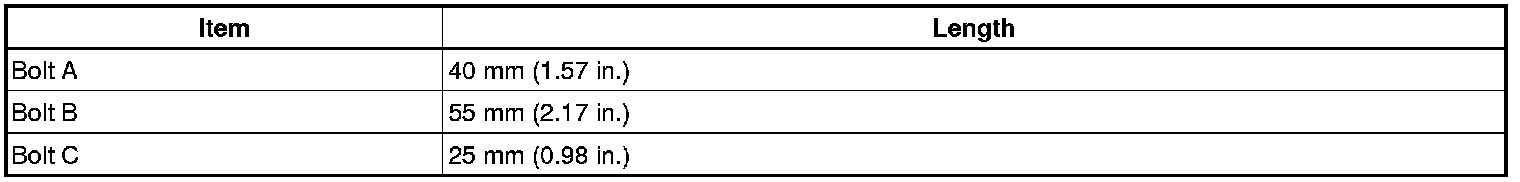

Bolt length
NOTE: Make sure that there is no oil on the bolt threads.
Fully tighten the bolts in area 1 and area 2.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Fully tighten the bolts and nuts in area 3.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
HINT: Tighten the bolts and nuts from top to bottom as shown in the illustration.
Fully tighten the bolts in area 4.
Bolt A - Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)
Except bolt A - Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
HINT: Tighten the bolts from bottom to top as shown in the illustration.

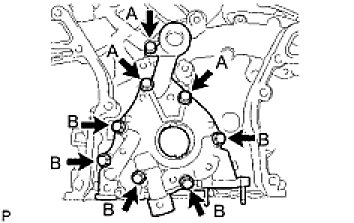

OIL PUMP COVER
Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)
