Water Pump
WATER PUMP ASSEMBLYInstall a new water pump gasket and the water pump assembly with the 8
bolts
Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)

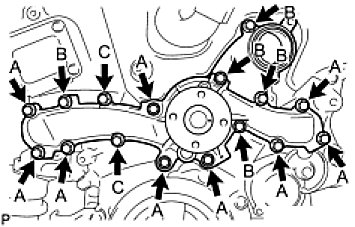

Install a new water pump gasket and the water pump assembly with the 16 bolts.
Bolt A - Torque: 21 Nm (214 kgf-cm, 16 ft-lbf)
Bolts B and C - Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)
