P310 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A0F-204: Engine Failed to Start

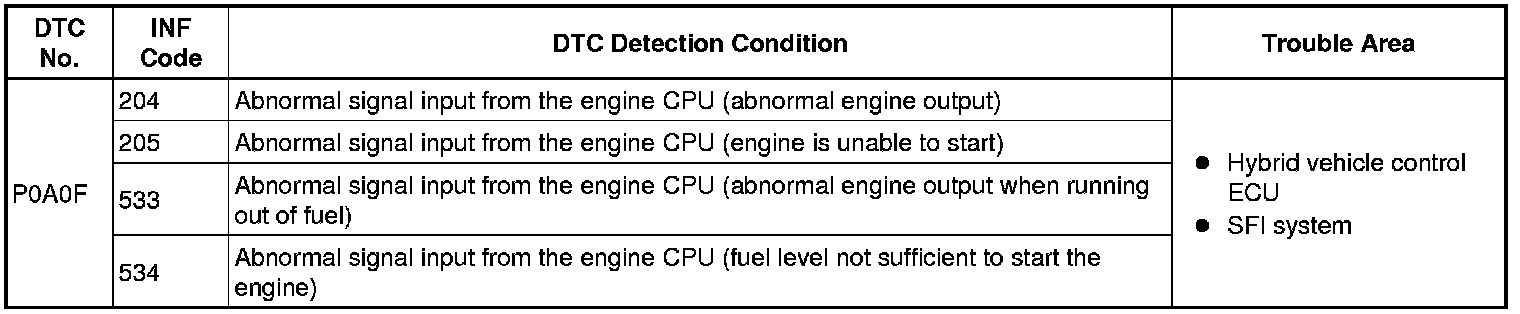

DTC P0A0F-204 - Engine Failed to Start

DTC P0A0F-205 - Engine Failed to Start

DTC P0A0F-533 - Engine Failed to Start

DTC P0A0F-534 - Engine Failed to Start

DESCRIPTION

The hybrid vehicle control ECU contains an HV CPU and an engine CPU. If a signal indicating an abnormality is received from the engine CPU, the HV CPU performs fail-safe control.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (SFI SYSTEM)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items: Powertrain / Engine Control / Trouble Codes.
(d) Check if DTCs are output.

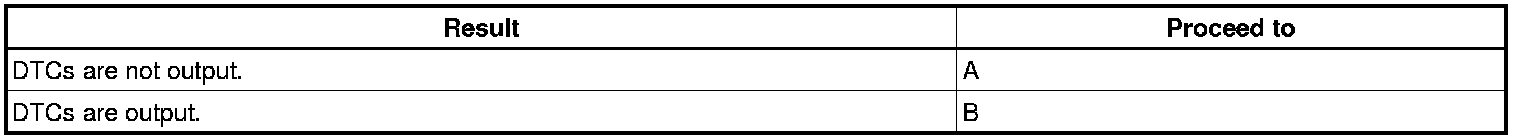

Result:






B -- GO TO DTC CHART Diagnostic Trouble Code Descriptions
A -- REPLACE HYBRID VEHICLE CONTROL ECU
