Theft Deterrent

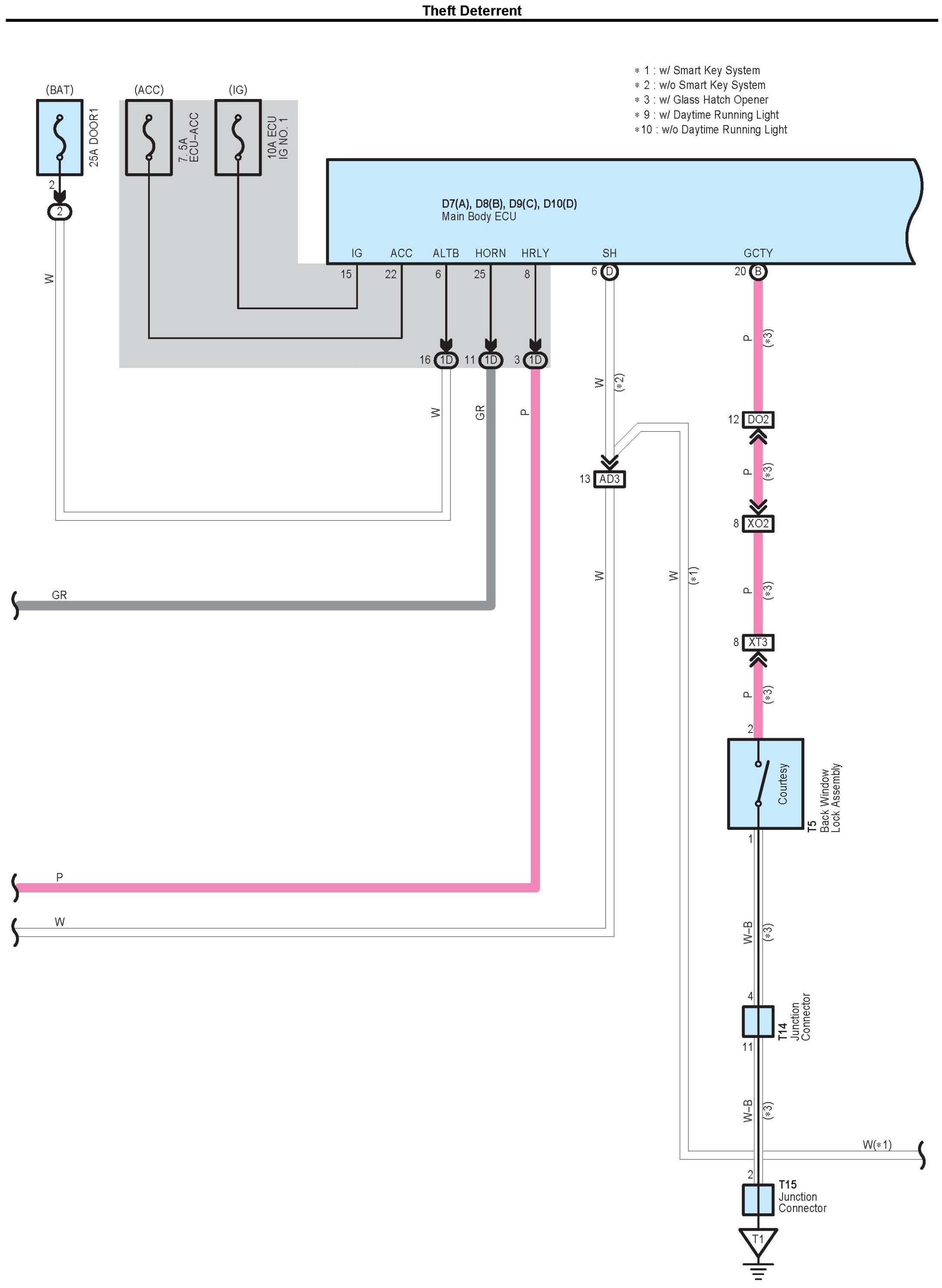

Theft Deterrent Part 1:

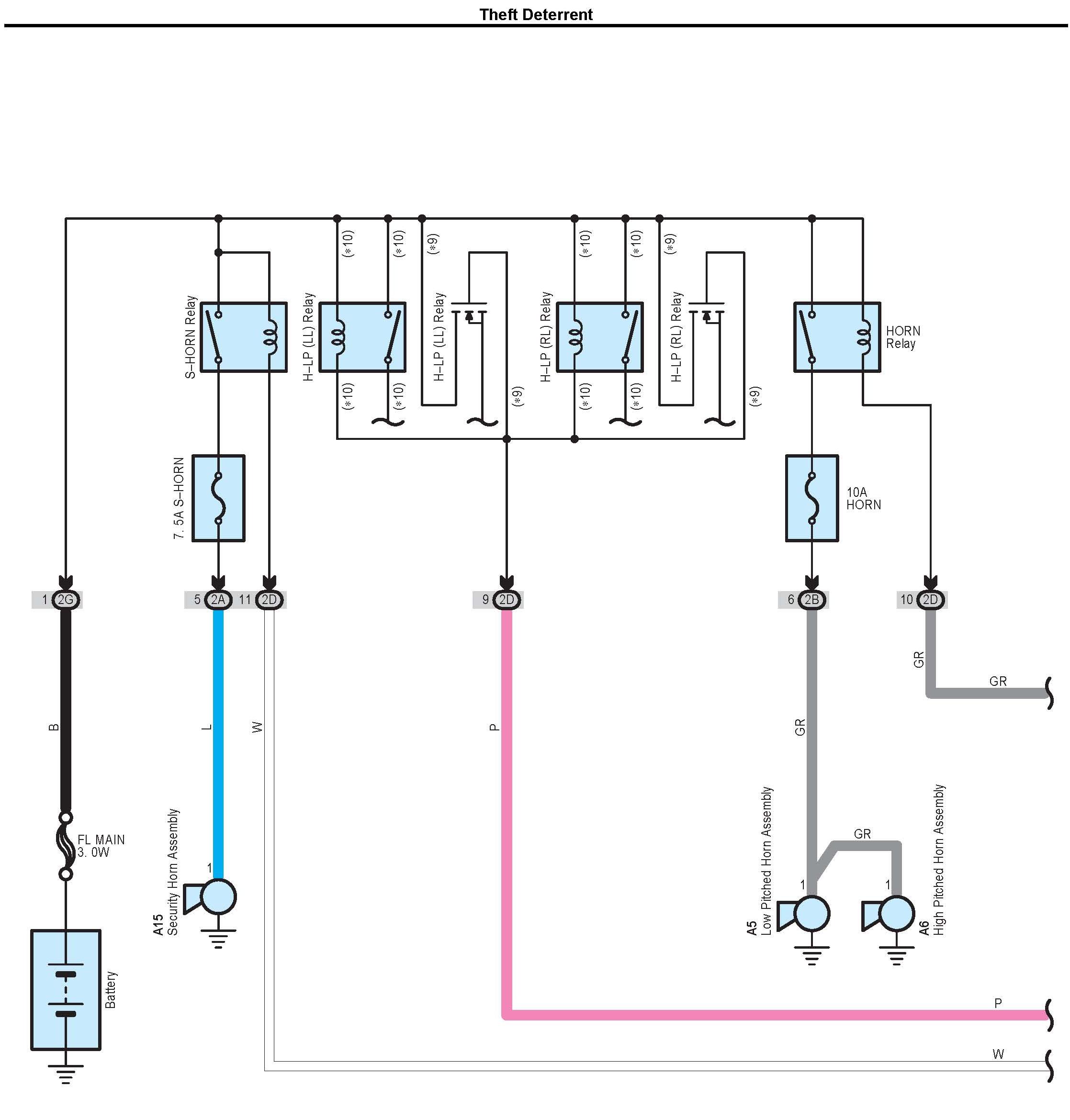

Theft Deterrent Part 2:

Theft Deterrent Part 3:

Theft Deterrent Part 4:

Theft Deterrent Part 5:

Theft Deterrent Part 6:

Theft Deterrent Part 7:

Theft Deterrent Part 8:

Theft Deterrent Part 9:

A5 - G6:

G8 - 1I:

1J - DN2:

DN3 - ED5:

GD1 - OD1:

QE1 - XT3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
