Display Does Not Dim When Light Control Switch Is Turned On

NAVIGATION: NAVIGATION SYSTEM: Display does not Dim when Light Control Switch is Turned ON

Display does not Dim when Light Control Switch is Turned ON

INSPECTION PROCEDURE

PROCEDURE

1. CHECK IMAGE QUALITY SETTING





(a) Enter the display adjustment screen by pressing the "DISP" switch.
(b) Turn the light control switch to the TAIL position.
(c) Check if "Day Mode" on the display adjustment is ON.
OK:
"Day Mode" is ON.
NG -- CHECK VEHICLE SIGNAL (DISPLAY CHECK MODE)
OK -- TURN "Day Mode" SETTING OFF
2. CHECK VEHICLE SIGNAL (DISPLAY CHECK MODE)





(a) Enter the "Display Check" mode (Vehicle Signal Check) Display Check Mode.

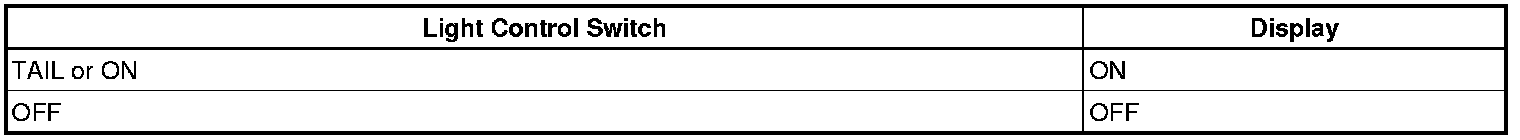

(b) Check that the display changes between ON and OFF according to the light control switch operation.
OK:





HINT: The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

NG -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
OK -- REPLACE NAVIGATION RECEIVER ASSEMBLY
