Installation

BRAKE CONTROL: REAR SPEED SENSOR (for 4WD): INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The following procedure is for the LH side.
- If the sensor rotor needs to be replaced, replace it together with the outboard joint shaft assembly.



1. INSTALL REAR SPEED SENSOR






(a) Install the rear speed sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
NOTE: Keep the rear speed sensor tip and sensor installation hole free from foreign matter.





(b) Install the No. 1 clamp and No. 2 clamp with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
NOTE: Do not twist the rear speed sensor wire when installing the clamp.

(c) Insert the connector and grommet to the inside of the vehicle through the passage hole in the wheel well.
NOTE: Make sure the grommet's band clamp remains on the outside of the vehicle.

(d) Hold the grommet and pull it from the inside of the vehicle to the outside of the vehicle. Then fix it in place so that it is not tilted.
NOTE: When pulling out the grommet, do not grip the sensor wire.

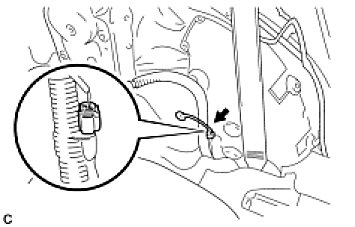

(e) Connect the rear speed sensor connector.
2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation

3. CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH Installation

4. INSTALL FRONT DECK SIDE TRIM COVER LH Installation

5. INSTALL NO. 2 DECK SIDE TRIM HOOK Installation

6. INSTALL ROPE HOOK ASSEMBLY (for LH Side) Installation

7. INSTALL REAR DECK TRIM COVER (w/o Remote Folding Function) Installation

8. INSTALL RECLINING REMOTE CONTROL BEZEL LH (w/ Remote Folding Function) Installation

9. INSTALL REAR POWER OUTLET SOCKET COVER Installation

10. INSTALL REAR POWER POINT SOCKET ASSEMBLY Installation

11. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH Installation

12. INSTALL SIDE TRIM COVER LH (w/o Rear Seat Entertainment System) Installation

13. INSTALL POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System) Installation

14. INSTALL DECK SIDE TRIM LH Installation

15. INSTALL DECK SIDE TRIM COVER LH Installation

16. INSTALL REAR FLOOR FINISH PLATE Installation

17. INSTALL REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat) Installation

18. CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY LH (w/ Rear No. 2 Seat) Installation

19. CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY RH (w/ Rear No. 2 Seat) Installation

20. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY (w/ Rear No. 2 Seat) Installation

21. INSTALL REAR DECK FLOOR BOX (w/o Rear No. 2 Seat) Installation

22. INSTALL DECK FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat) Installation

23. INSTALL REAR MAT Installation

24. INSTALL DECK FLOOR BOARD ASSEMBLY (w/ Rear No. 2 Seat) Installation

25. INSTALL DECK SIDE TRIM BOX LH Installation

26. INSTALL REAR SEAT SIDE COVER LH (w/ Rear No. 2 Seat) Installation

27. INSTALL DECK SIDE TRIM BOX RH Installation

28. INSTALL JACK CARRIER ASSEMBLY Installation

29. INSTALL JACK ASSEMBLY Installation

30. INSTALL JACK CARRIER CUSHION Installation

31. INSTALL JACK CARRIER SUPPORT
32. INSTALL REAR SEAT SIDE COVER RH (w/ Rear No. 2 Seat) Installation

33. INSTALL REAR NO. 1 FLOOR BOARD (w/o Rear No. 2 Seat) Installation

34. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) Installation

35. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY Installation

36. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY Installation

37. INSTALL DECK BOARD ASSEMBLY Installation

38. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation

39. INSTALL REAR DOOR SCUFF PLATE LH Installation

40. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

41. CHECK FOR SPEED SENSOR SIGNAL
HINT: Test Mode Procedure
