Torque Specifications

SERVICE SPECIFICATIONS: BRAKE CONTROL: TORQUE SPECIFICATIONS

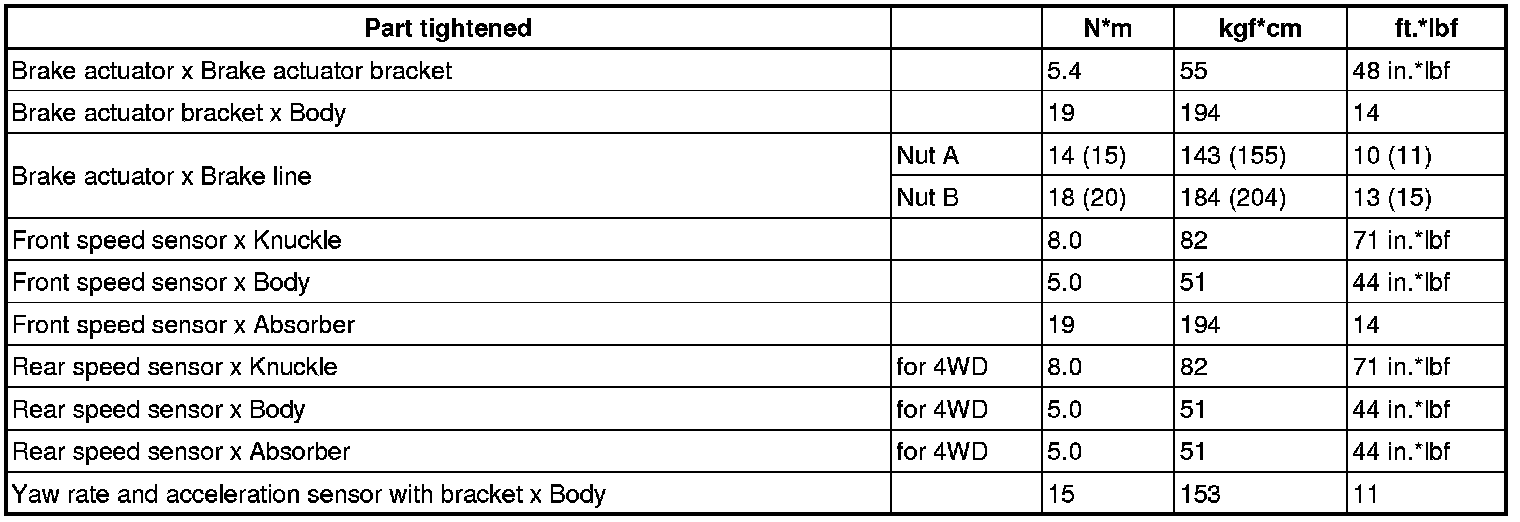

TORQUE SPECIFICATIONS

( ) For use without union nut wrench
