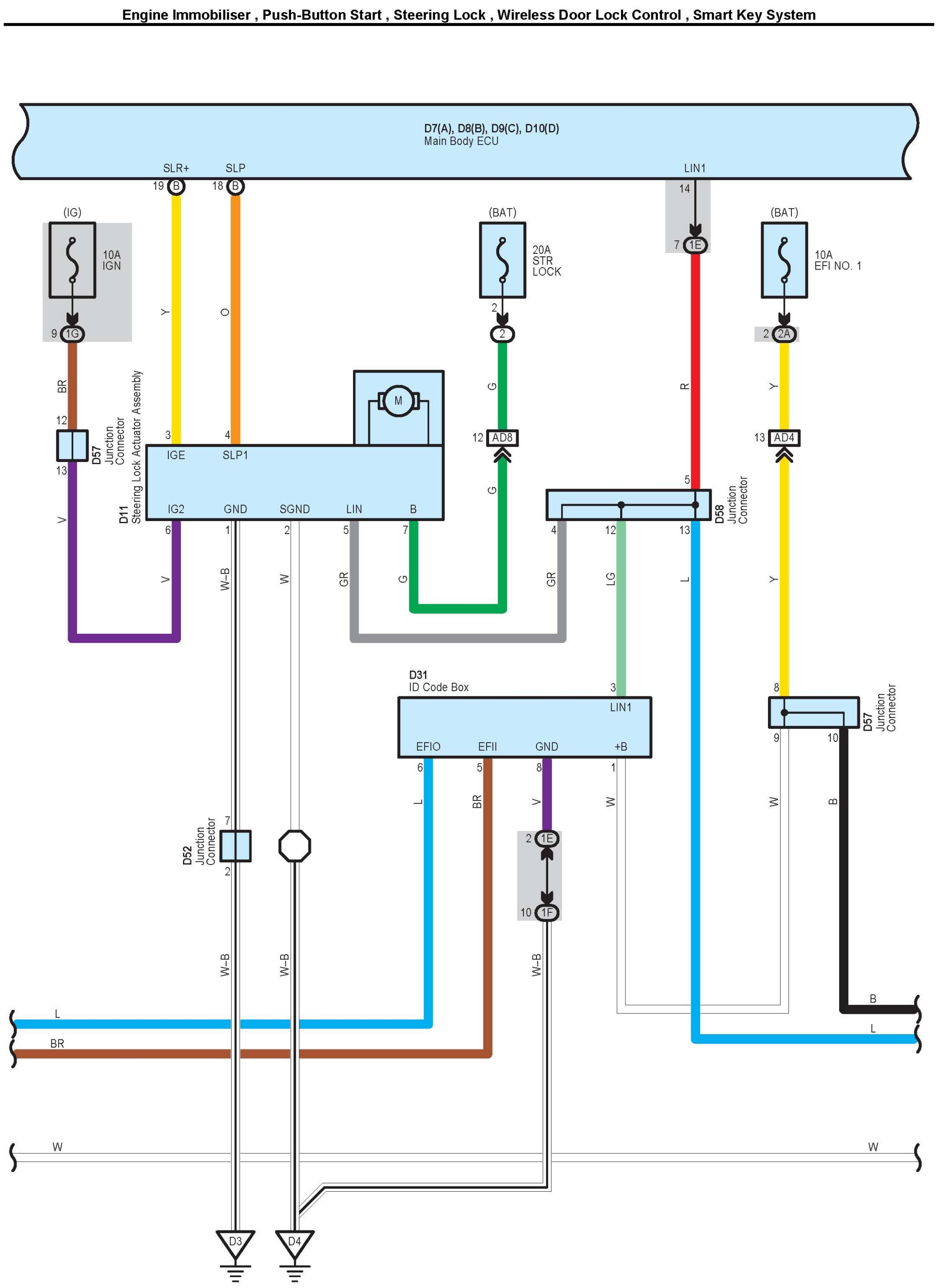

System Diagram

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 1:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 2:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 3:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 4:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 5:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 6:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 7:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 8:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 9:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 10:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 11:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 13:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 13:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 14:

Engine Immobilizer, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System Part 15:

A5 - D10:

D11 - D59:

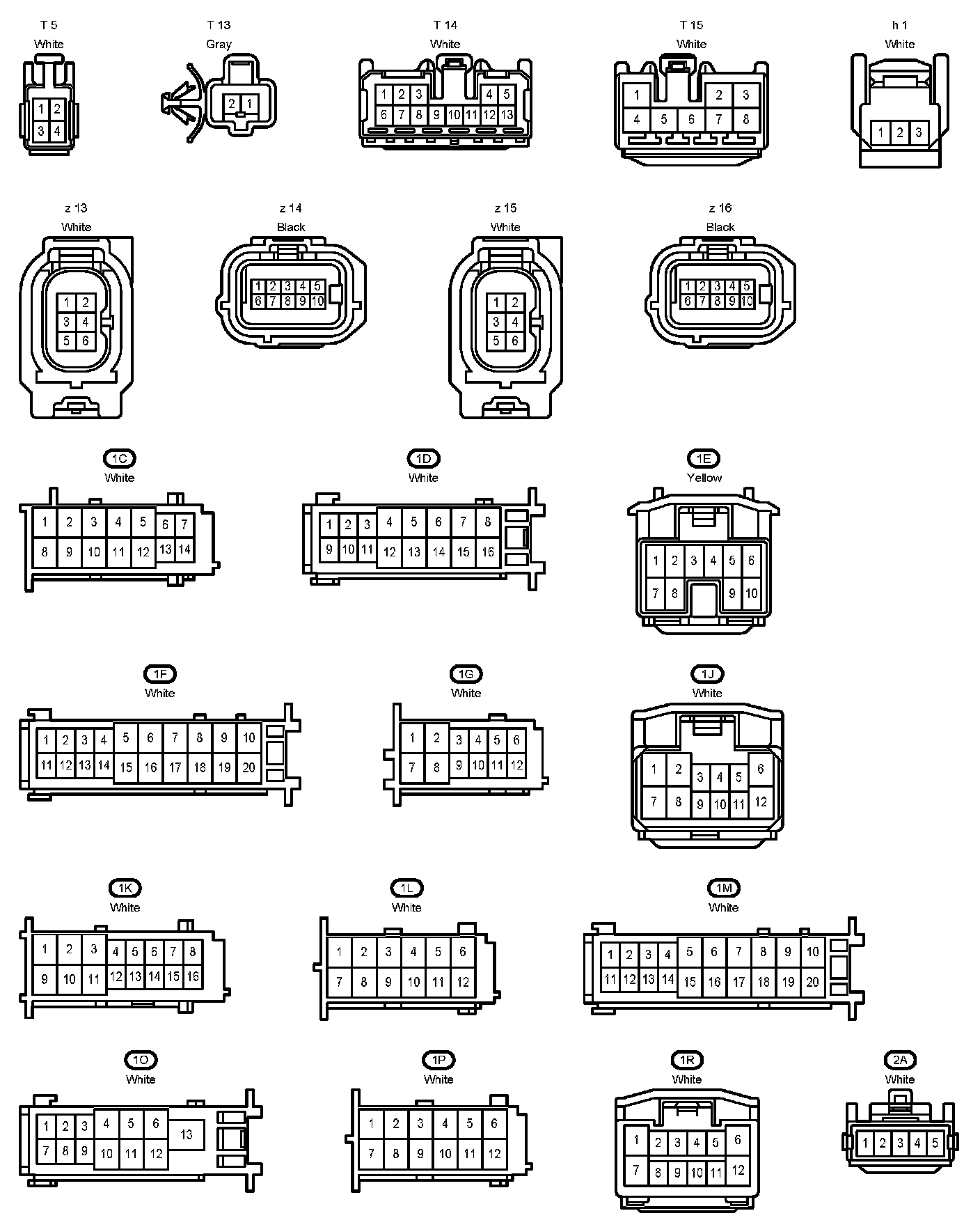

E1 - T4:

T5 - 2A:

2B - AD9:

BA1 - DO2:

DO3 - GD1:

GD2 - KO1:

OD1 - XT2:

XT3 - hT2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
