Installation

2GR-FE COOLING: COOLING FAN ECU: INSTALLATION

INSTALLATION

1. INSTALL COOLING FAN ECU

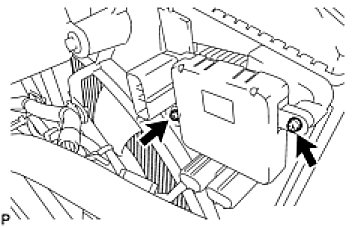

(a) Install the ECU with the 2 screws.
Torque: 2.6 Nm (27 kgf-cm, 23 in-lbf)






(b) Connect the No. 1 cooling fan motor and No. 2 cooling fan motor connectors.






(c) Connect the FAN ECU connector.
