Symptom Related Diagnostic Procedures

U151F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT:
- If a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts and proceed to the page given for troubleshooting.
- The Matrix Chart is divided into 2 chapters.
- When the circuit on which mark *1 is attached is a malfunction, DTC could be output.

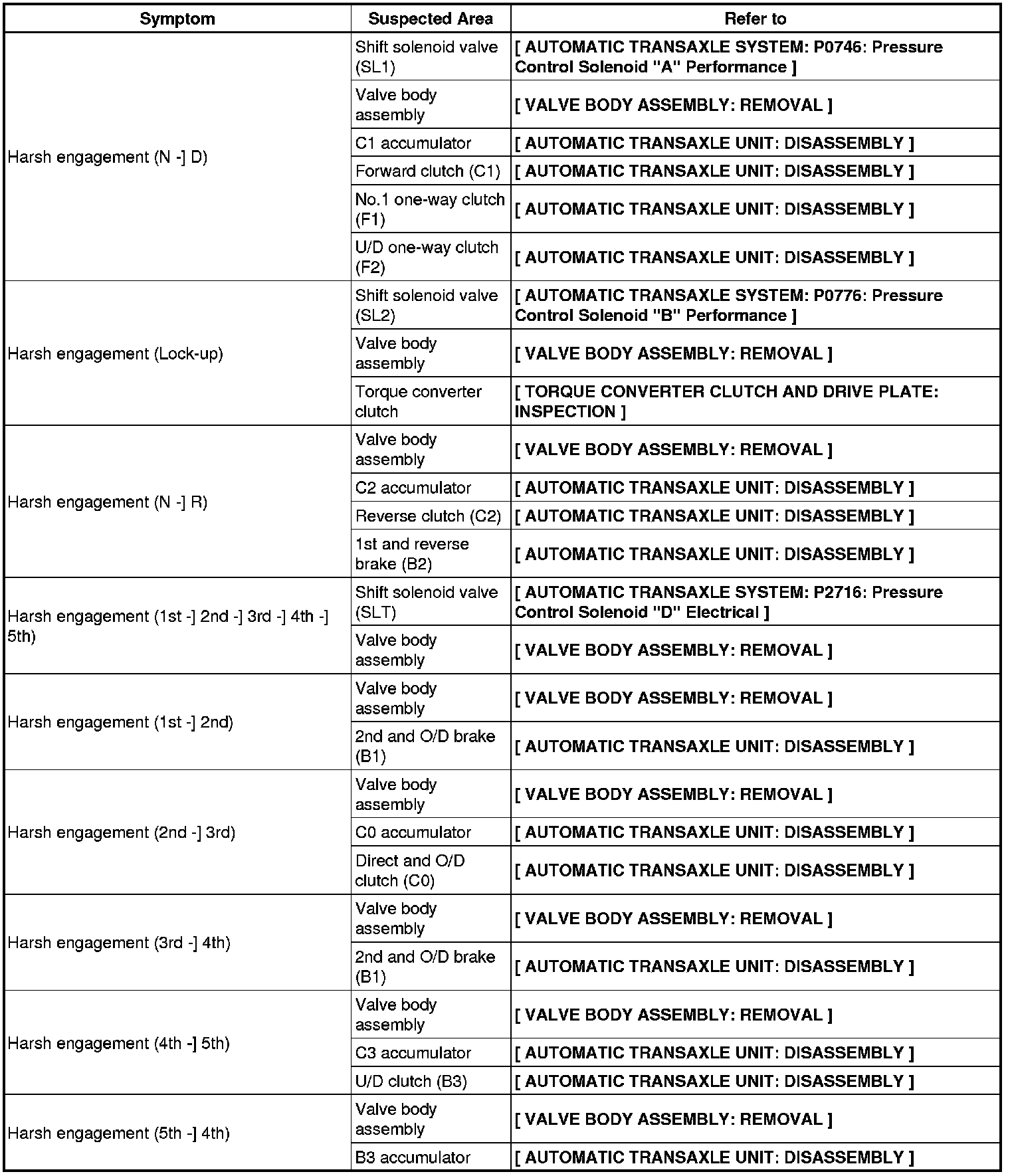

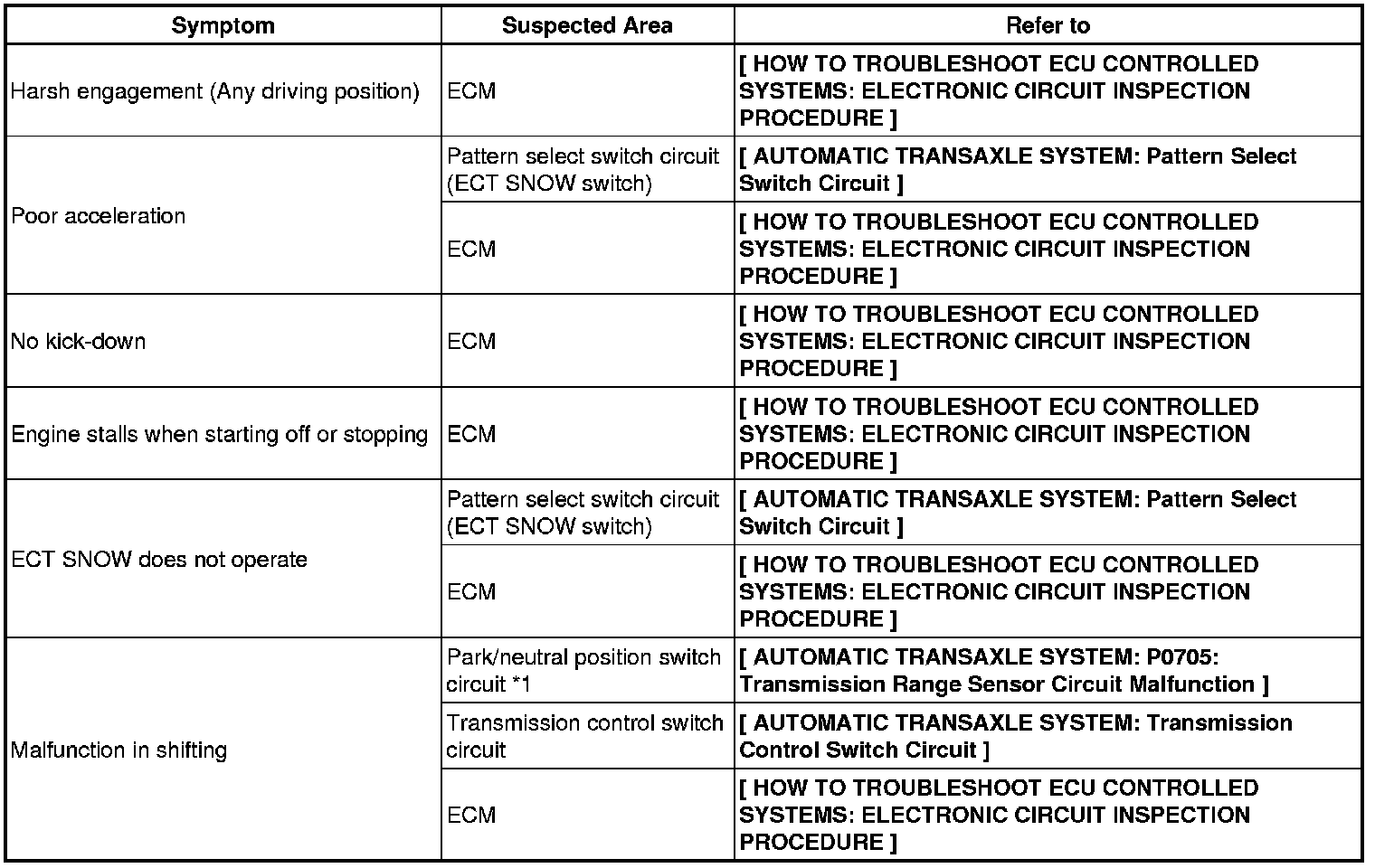

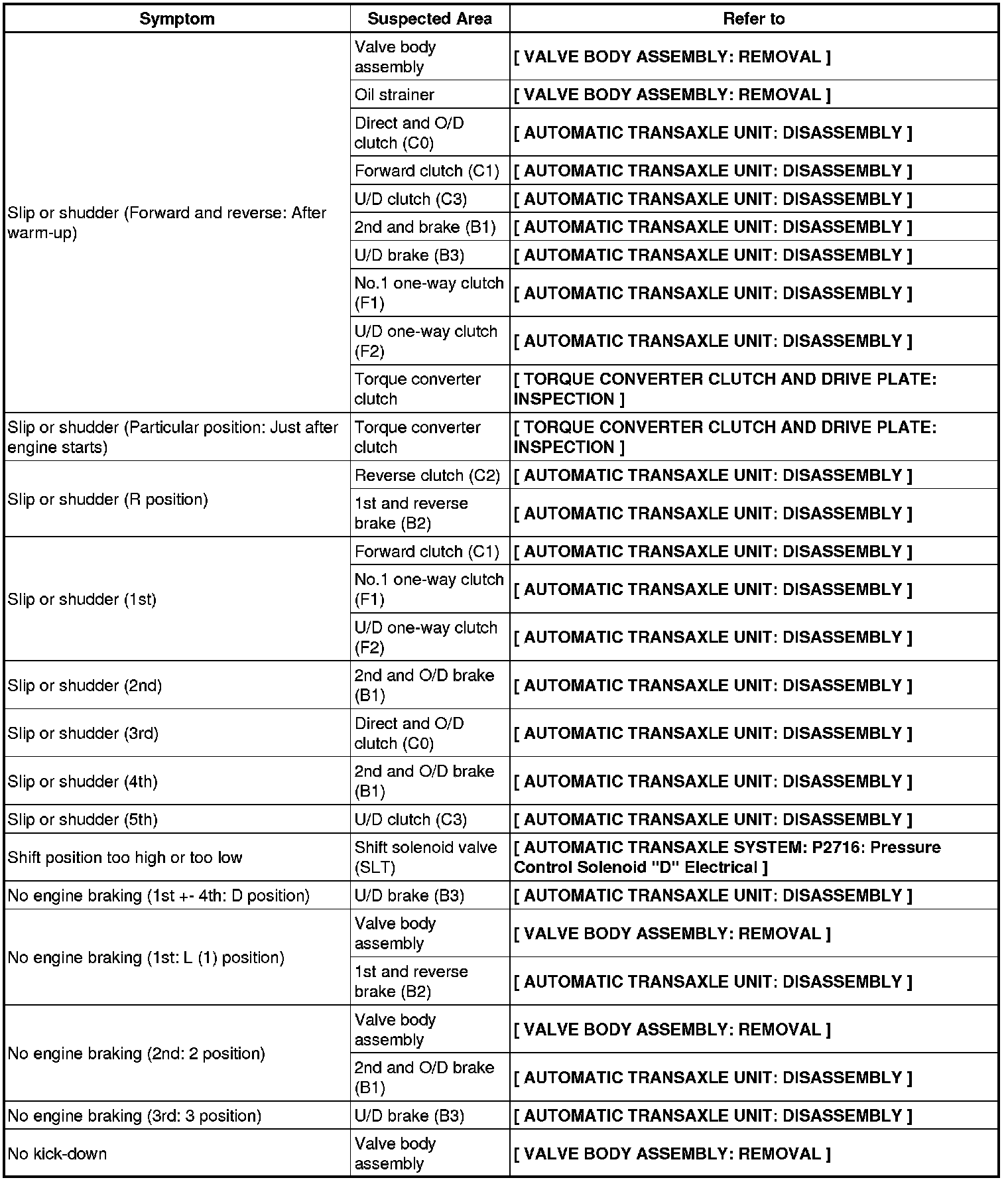

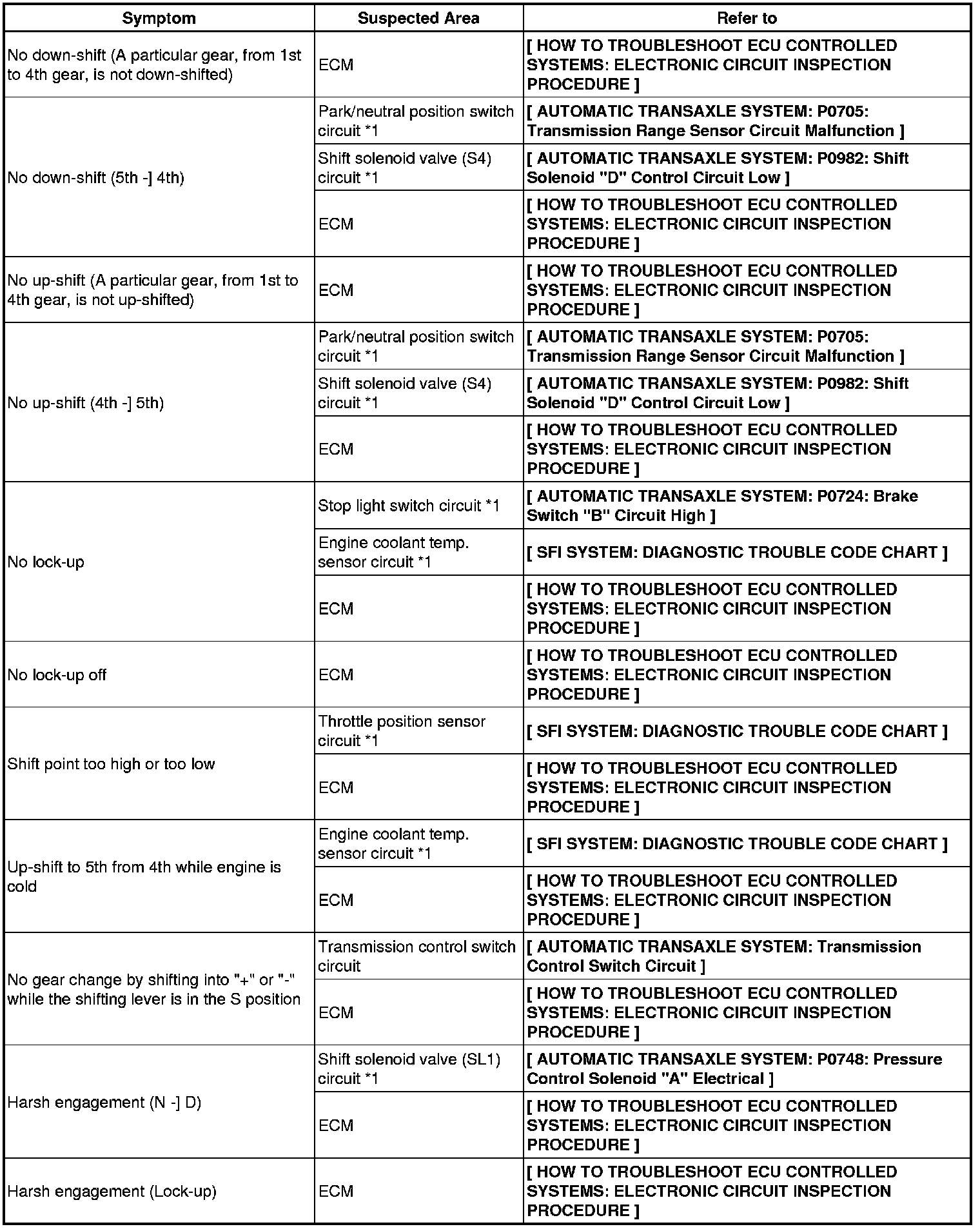

1. Chapter 1: Electronic Circuit Matrix Chart









HINT: *1: When the circuit on which mark *1 is detective, a DTC may be output.

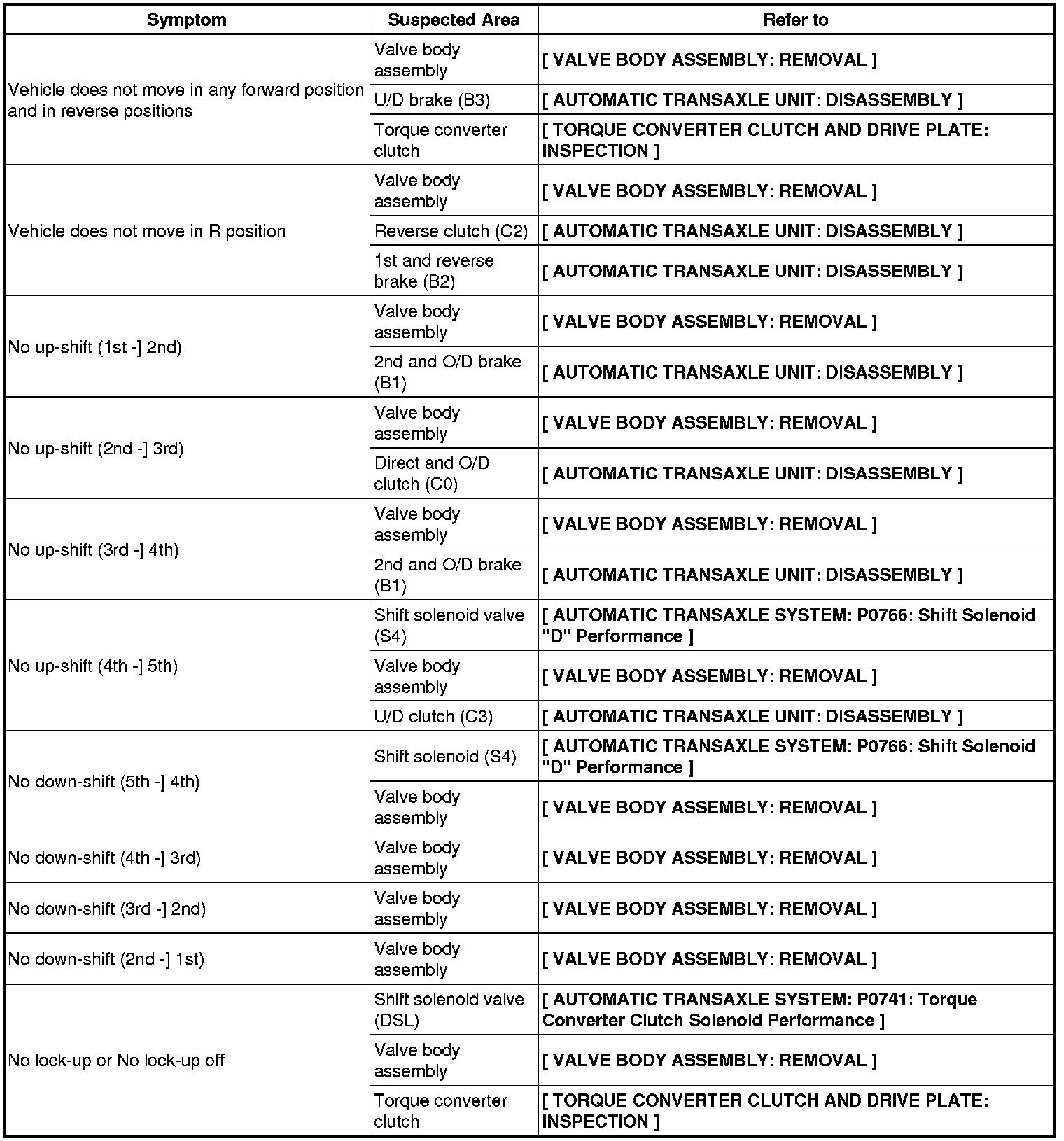

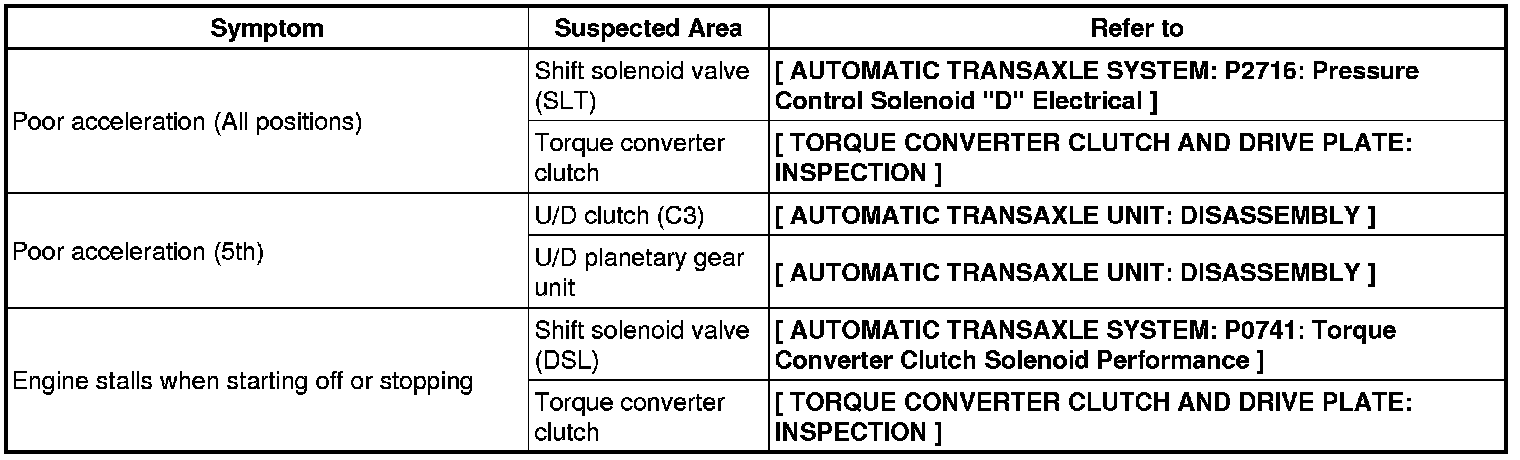

2. Chapter 2: On-Vehicle Repair and Off-Vehicle Repair
