NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 45-41: Wrong Disc

DTC 45-41 - Wrong Disc

DTC 45-42 - Disc cannot be Read

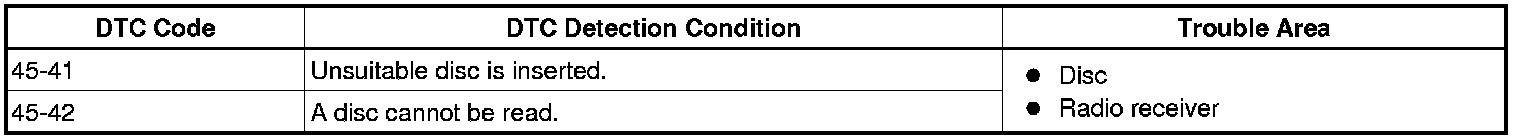

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs. Reading and Clearing Diagnostic Trouble Codes

PROCEDURE

1. CHECK DISC





(a) Check that the disc is not deformed or cracked.
OK:
No deformation or cracks on the disc.
NG -- REPLACE DISC
OK -- Continue to next step.
2. DISC CLEANING





(a) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.
NOTE: Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.
3. CLEAR DTC
(a) Clear the DTC. Reading and Clearing Diagnostic Trouble Codes
NEXT -- Continue to next step.
4. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble code is output.
OK:
No DTC is output.
NG -- REPLACE DISC WITH ANOTHER AND RECHECK
OK -- END
5. REPLACE DISC WITH ANOTHER AND RECHECK
(a) Replace the disc with a normal one.
(b) Clear the DTCs. Reading and Clearing Diagnostic Trouble Codes
(c) Recheck for DTCs and check if the same trouble code is output.
OK:
No DTC is output.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END
