Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

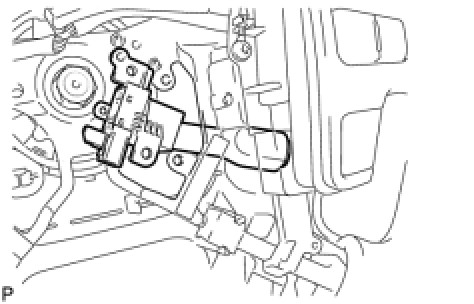

1. INSTALL CRUISE CONTROL MAIN SWITCH

(a) Install the switch.

(b) Install the 2 screws.

(c) Connect the connector and clamp.
2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
