Installation

BRAKE CONTROL: FRONT SPEED SENSOR:

COMPONENTS









INSTALLATION

1. INSTALL SPEED SENSOR FRONT LH

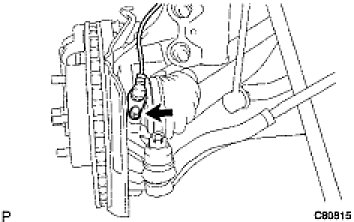

(a) Install the speed sensor front LH with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)

NOTE: Make sure the sensor tip is clean.

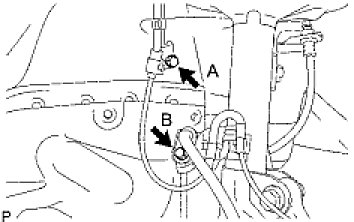

(b) Install the sensor harness clamp with the 2 bolts "A" and "B" to the body and shock absorber.
Bolt A - Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
Bolt B - Torque: 29 Nm (296 kgf-cm, 21 ft-lbf)

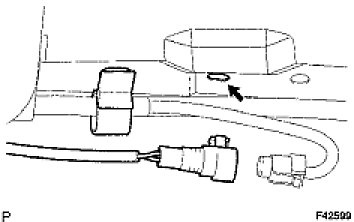

(c) Connect the speed sensor connector.
(d) Connect the speed sensor wire harness clamp to the body.
2. INSTALL FRONT FENDER LINER LH
3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
4. CHECK ABS SPEED SENSOR SIGNAL

HINT: (Test Mode Procedure)
