Disassembly

AIR CONDITIONING: CONDENSER:

COMPONENTS






DISASSEMBLY

1. REMOVE COOLER DRYER





(a) Using a socket hexagon wrench 14mm (0.55 in.), remove the cap from the modulator.

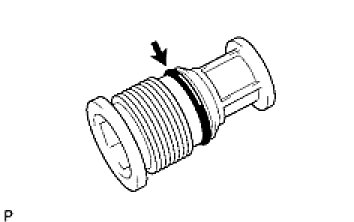

(b) Remove the O-ring from the cap.





(c) Using pliers, remove the cooler dryer.
