Locations
>>
Ground Locations
Ground Locations

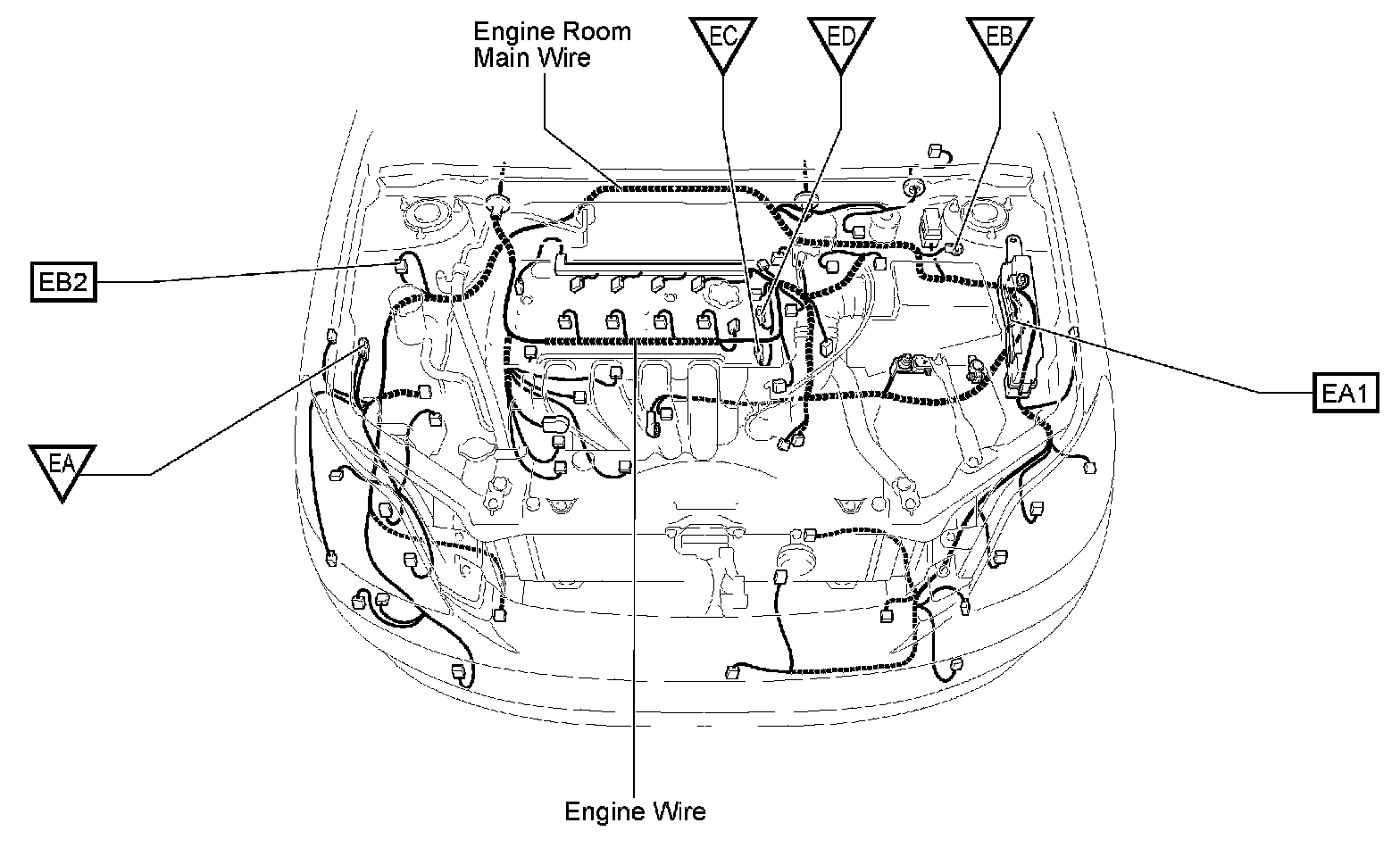

EA - ED, EA1 - EB2:

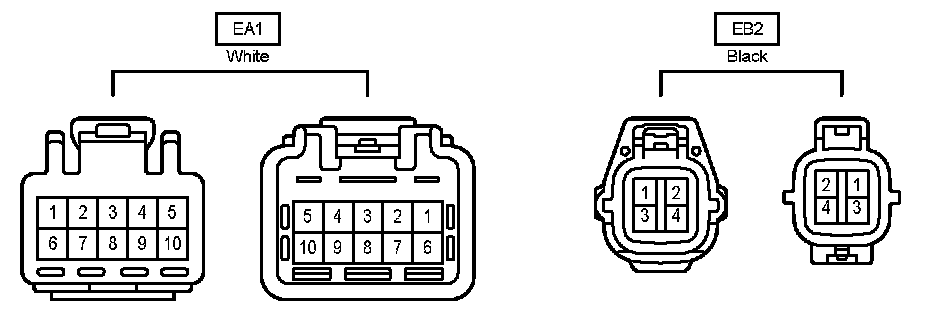

Connector Views:

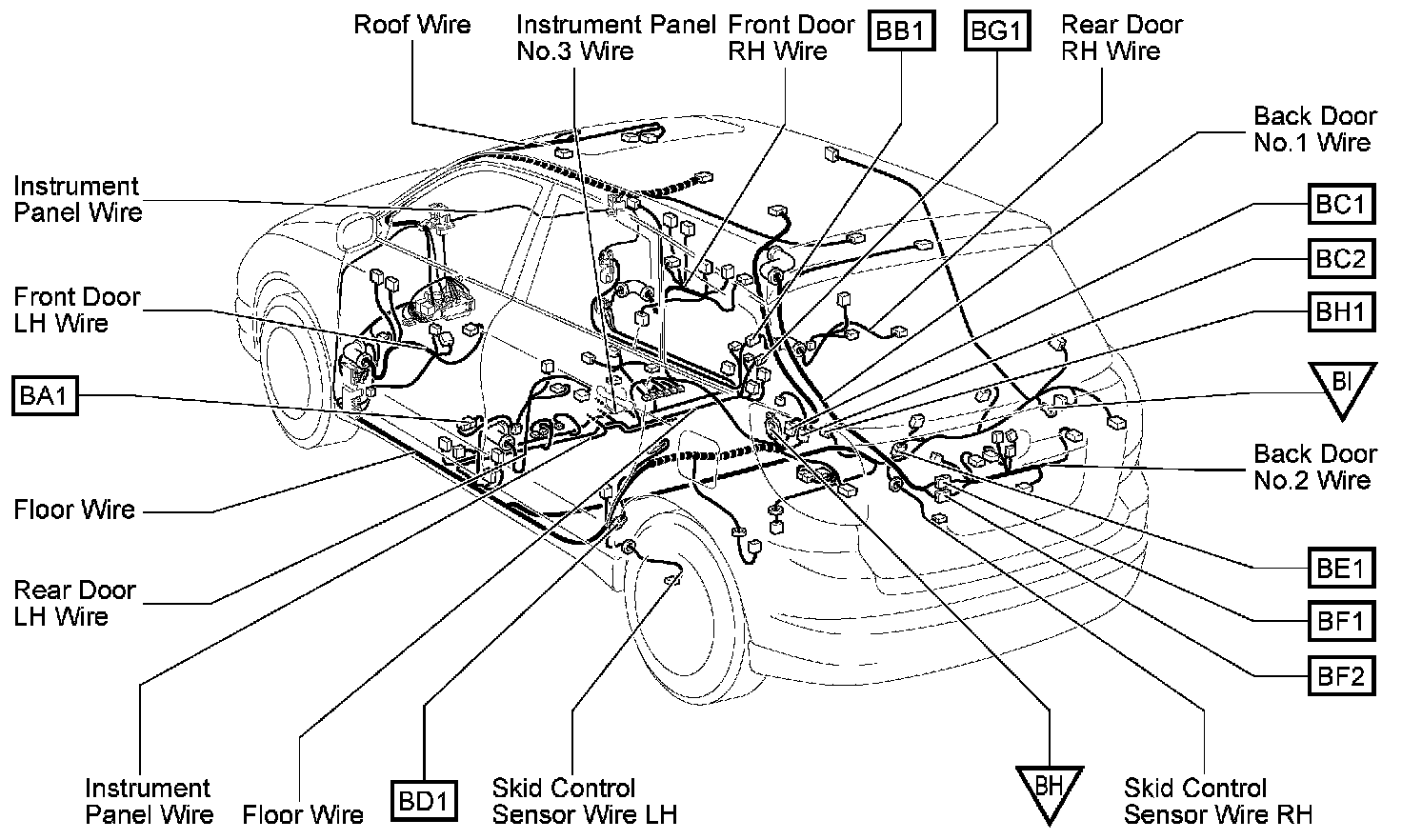

BA1 - BH1, BH - BI:
Connector Views:

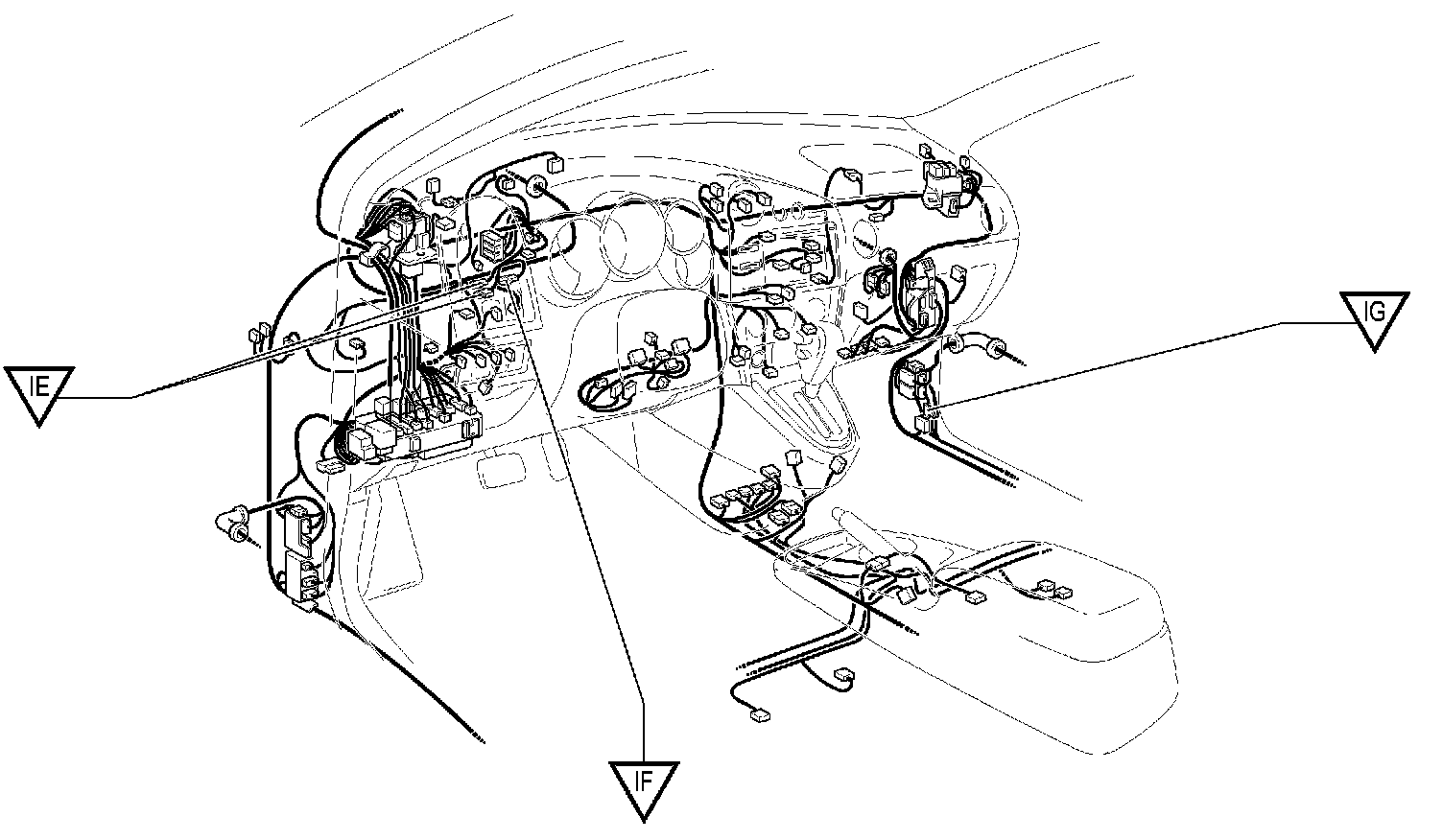

IE - IG:
