Removal

A246E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH:

COMPONENTS









REMOVAL

1. REMOVE BATTERY
2. REMOVE BATTERY CARRIER

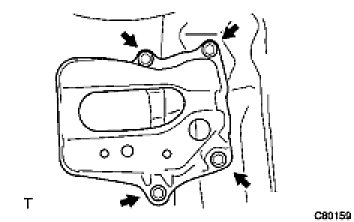

(a) Remove the 4 bolts and battery carrier.
3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Remove the nut from the control shaft lever.
(b) Disconnect the control cable from the control shaft lever.





(c) Remove the clip and disconnect the control cable from the bracket.
4. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Disconnect the park/neutral position switch connector.

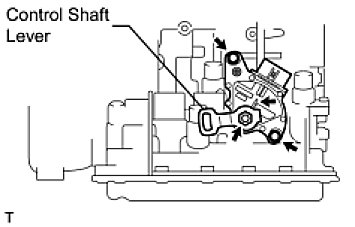

(b) Remove the nut, washer and control shaft lever.
(c) Pry out the lock plate and remove the manual valve shaft nut.
(d) Remove the 2 bolts and pull out the park/neutral position switch.
