Windows: Description and Operation








WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM:

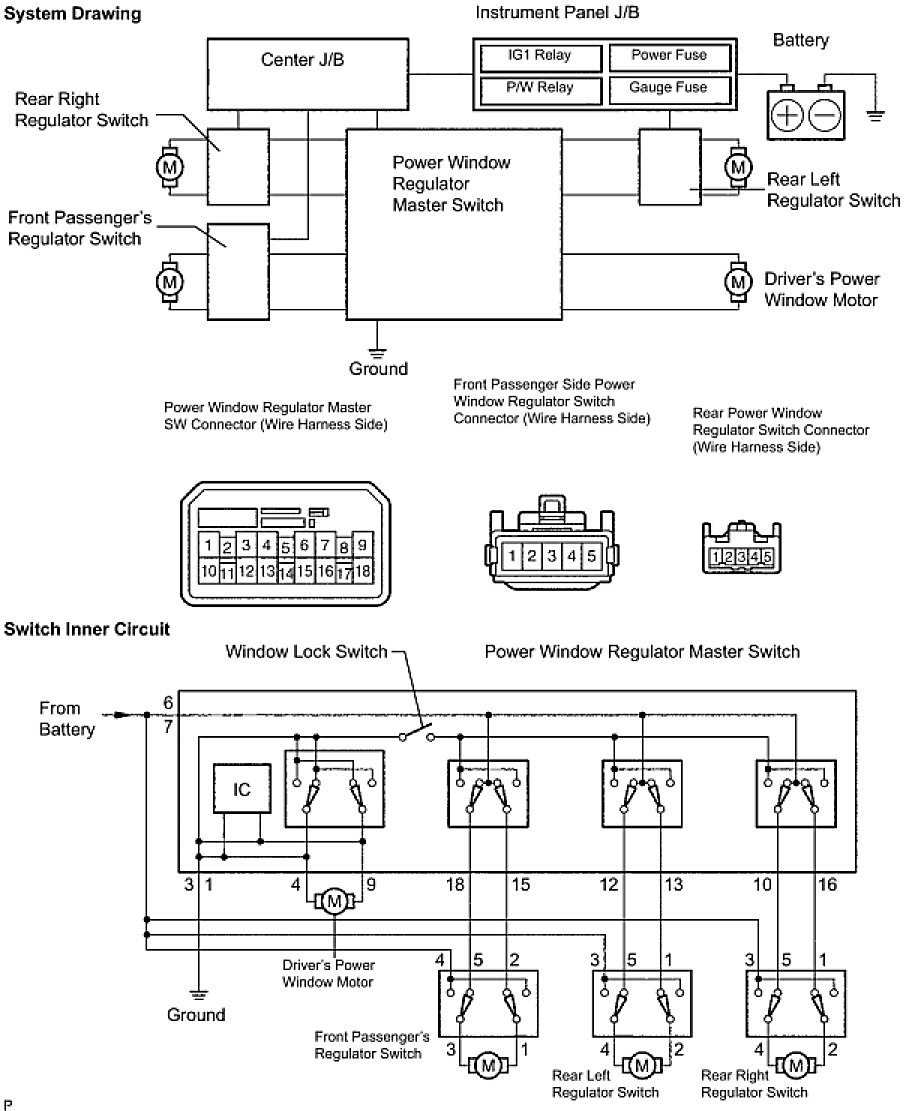

SYSTEM DIAGRAM
