Power Window Motor
Power Window Motor

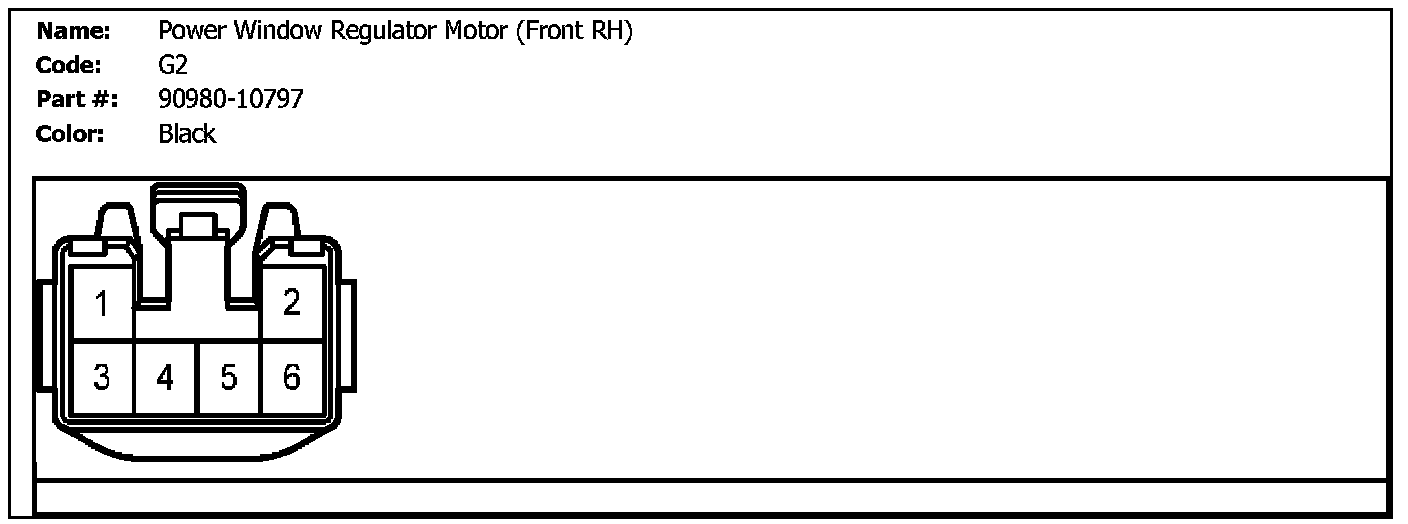

G2 (Power Window Regulator Motor (Front RH)):

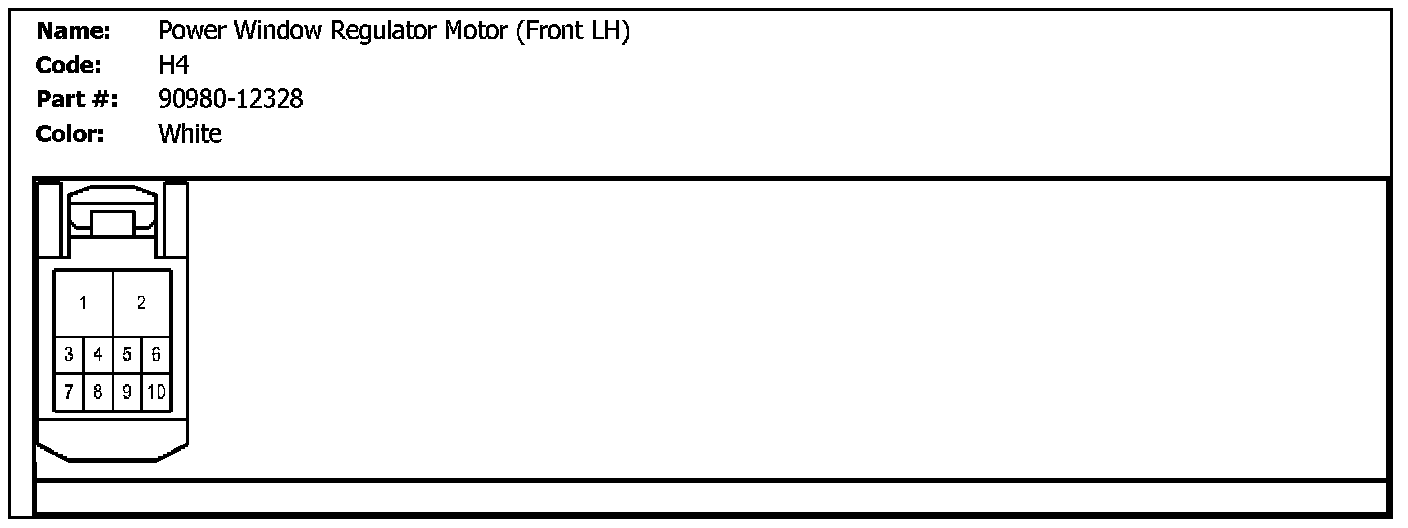

H4 (Power Window Regulator Motor (Front LH)):

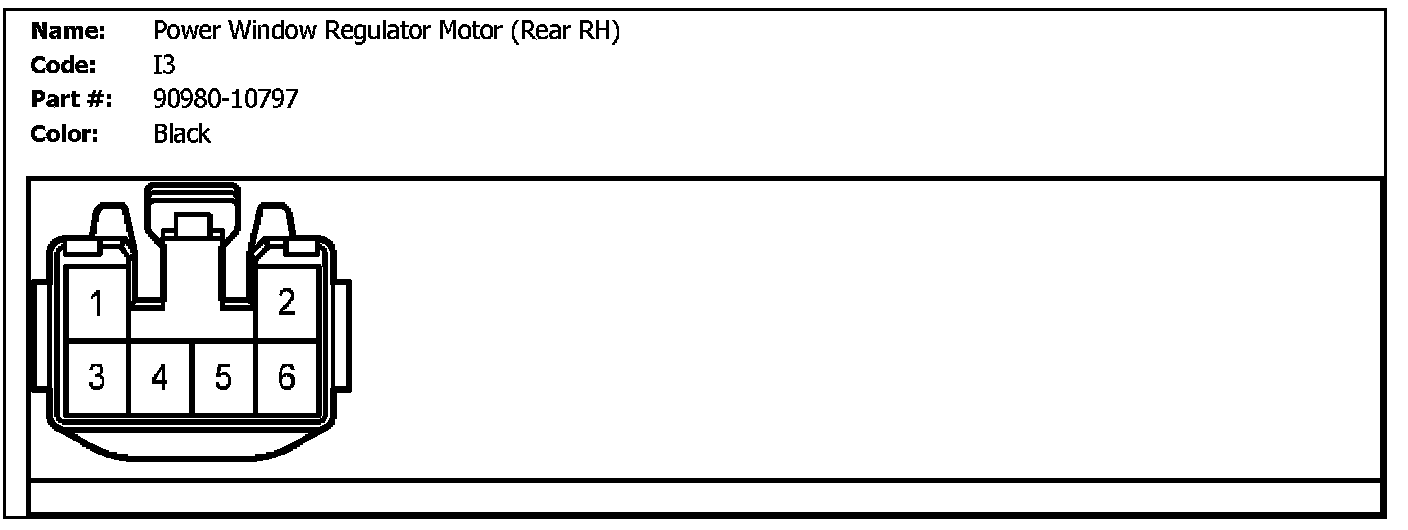

I3 (Power Window Regulator Motor (Rear RH)):

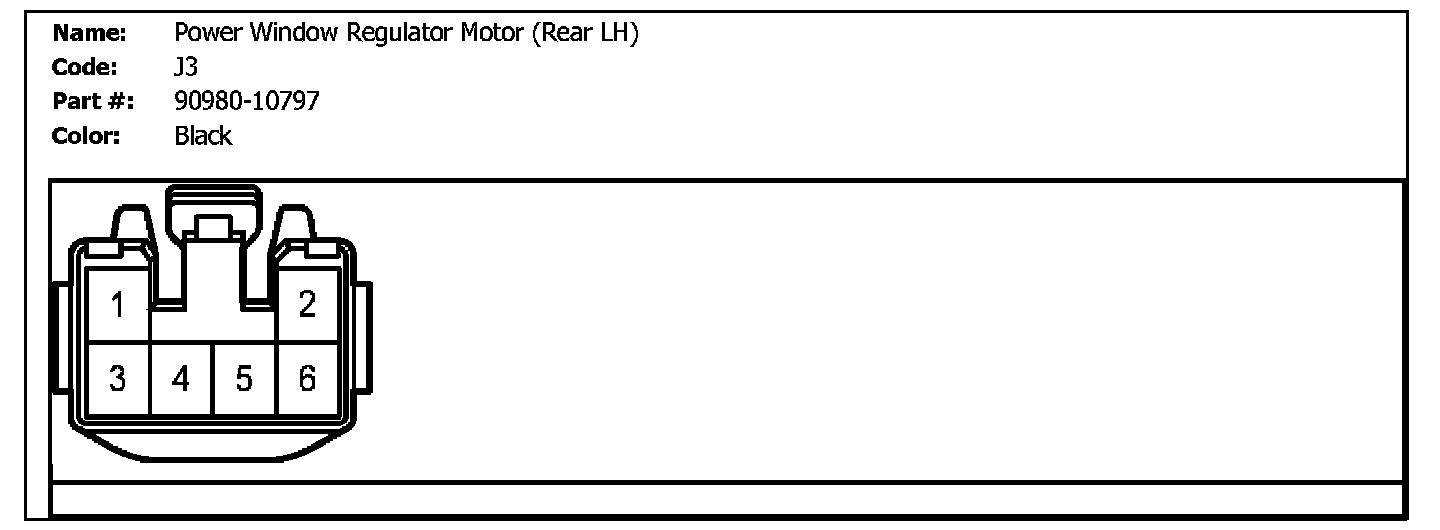

J3 (Power Window Regulator Motor (Rear LH)):
