Removal

2AZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE AIR CLEANER CAP Removal

4. REMOVE AIR CLEANER CASE Removal

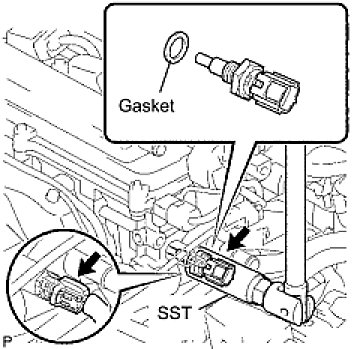

5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR






(a) Disconnect the sensor connector.
(b) Using SST, remove the sensor and gasket.
SST: 09817-33190
