Symptom Related Diagnostic Procedures








CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

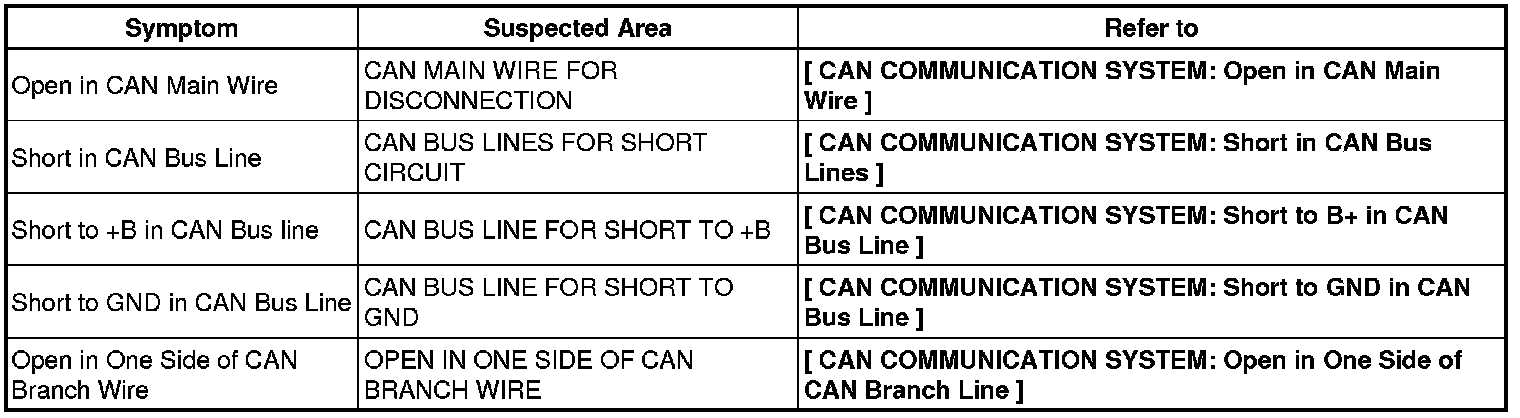

Result list of check can bus line

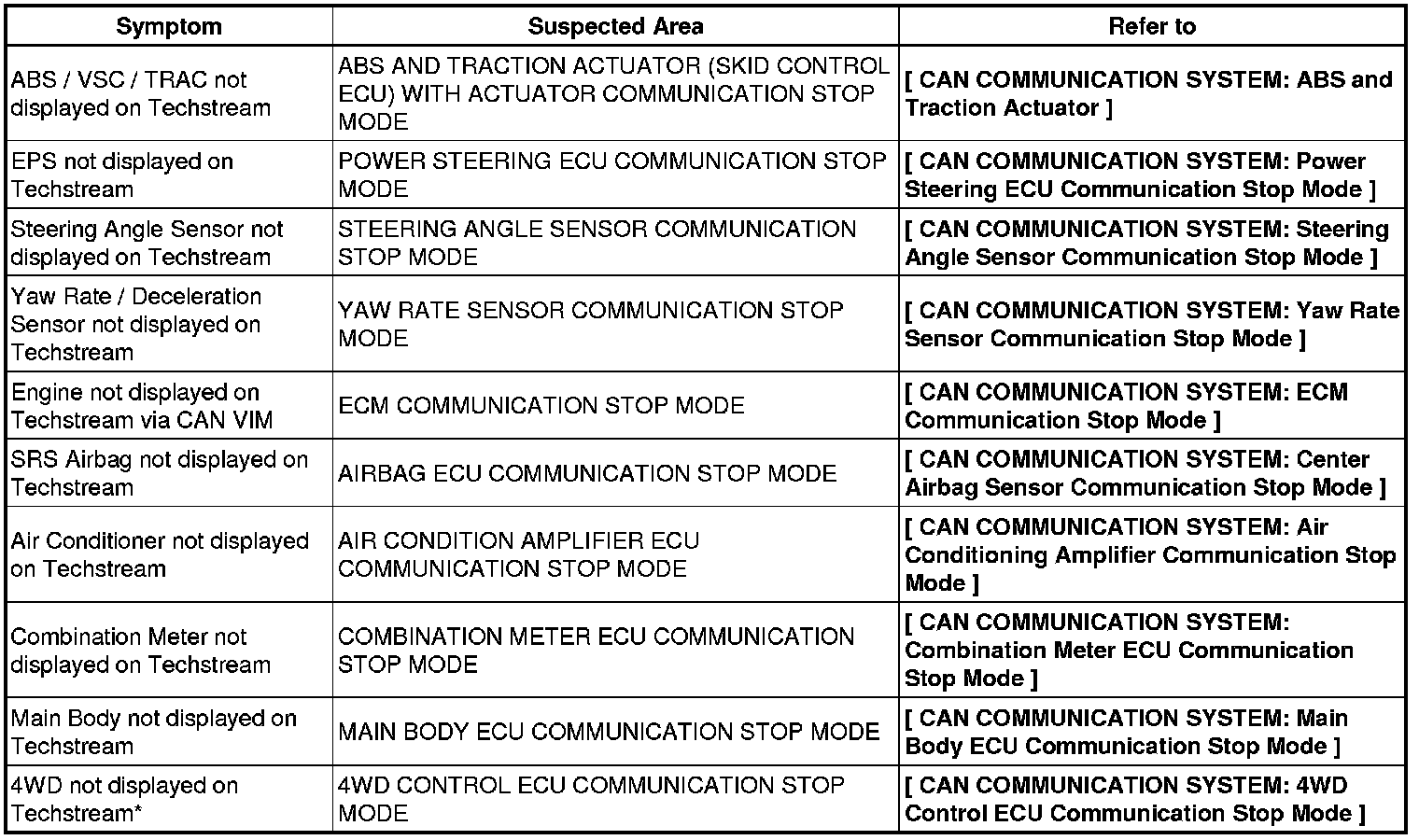

Communication stop mode table





HINT: *: for 4WD
