Installation








2AZ-FE CHARGING: GENERATOR: INSTALLATION

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

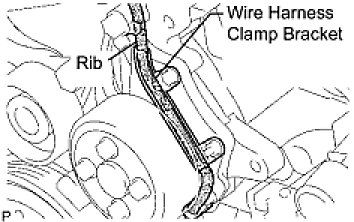

(a) Confirm that the wire harness of the crankshaft position sensor is secured to the wire harness clamp bracket through the back of the rib of the timing chain cover.

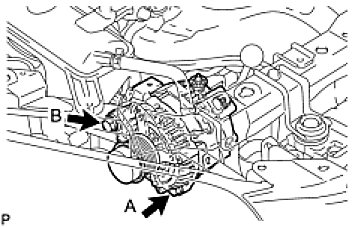

(b) Install the generator with the 2 bolts.
Torque: 21 Nm (215 kgf-cm, 16 ft-lbf)
Torque: 52 Nm (530 kgf-cm, 38 ft-lbf)

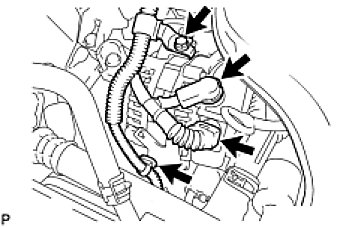

(c) Install the wire harness clamp.
(d) Install the wire harness clamp bracket with the bolt.
Torque: 8.4 Nm (85 kgf-cm, 74 in-lbf)
(e) Connect the generator wire with the nut.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)
(f) Install the terminal cap.
(g) Connect the generator connector.
2. INSTALL FAN AND GENERATOR V BELT
(a) Install the belt.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
