Removal








2AZ-FE CHARGING: GENERATOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FAN AND GENERATOR V BELT
(a) Remove the belt.
3. REMOVE GENERATOR ASSEMBLY





(a) Disconnect the generator connector.
(b) Remove the terminal cap.
(c) Remove the nut and disconnect the generator wire.
(d) Remove the bolt and wire harness clamp bracket.
(e) Remove the wire harness clamps.

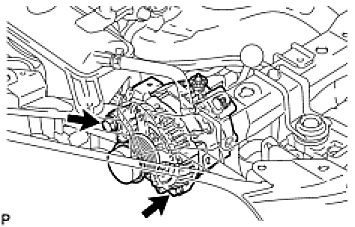

(f) Remove the 2 bolts and generator.
