Locations
>>
Connector Locations
Connector Locations

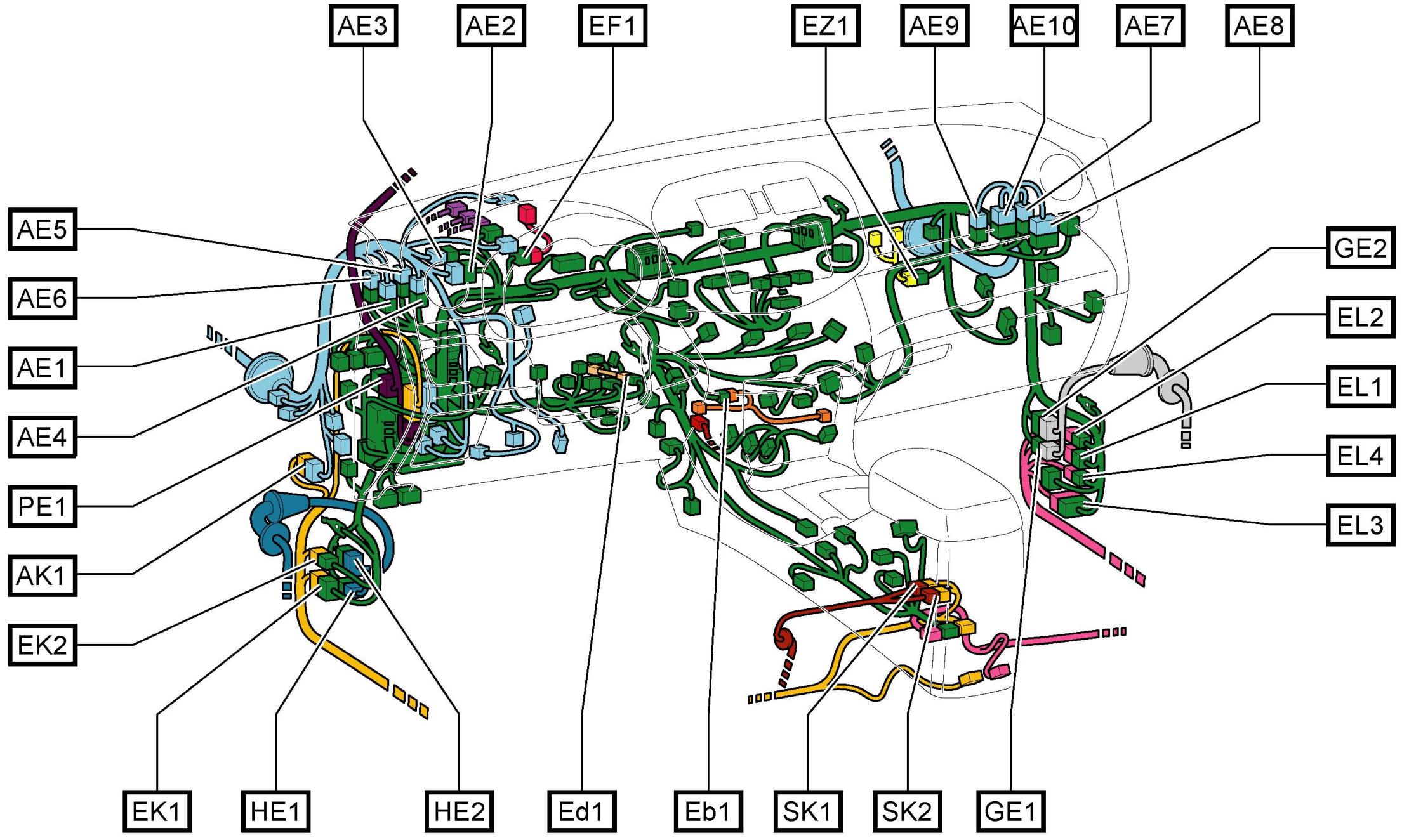

Wire And Wire In Instrument Panel:

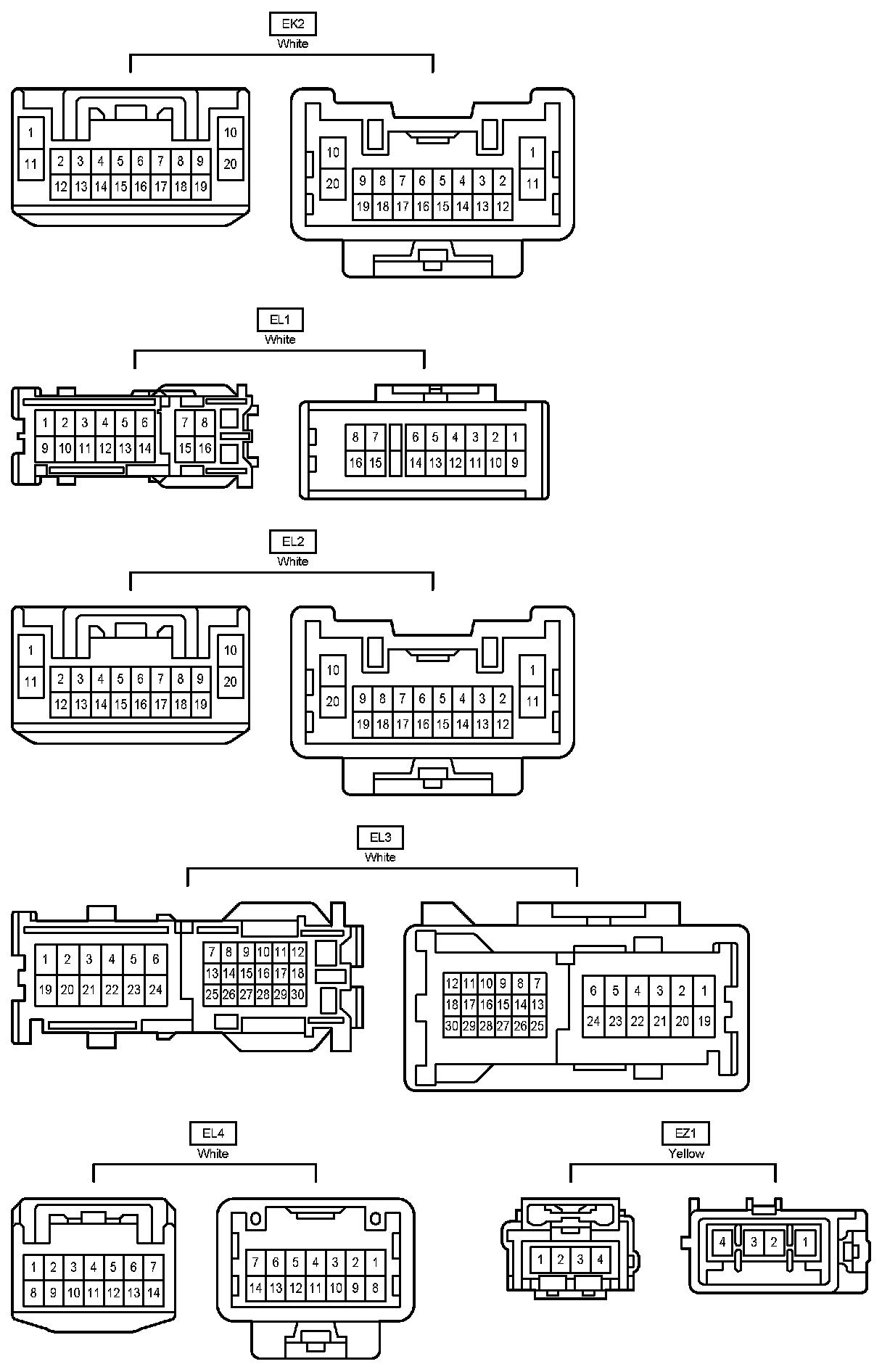

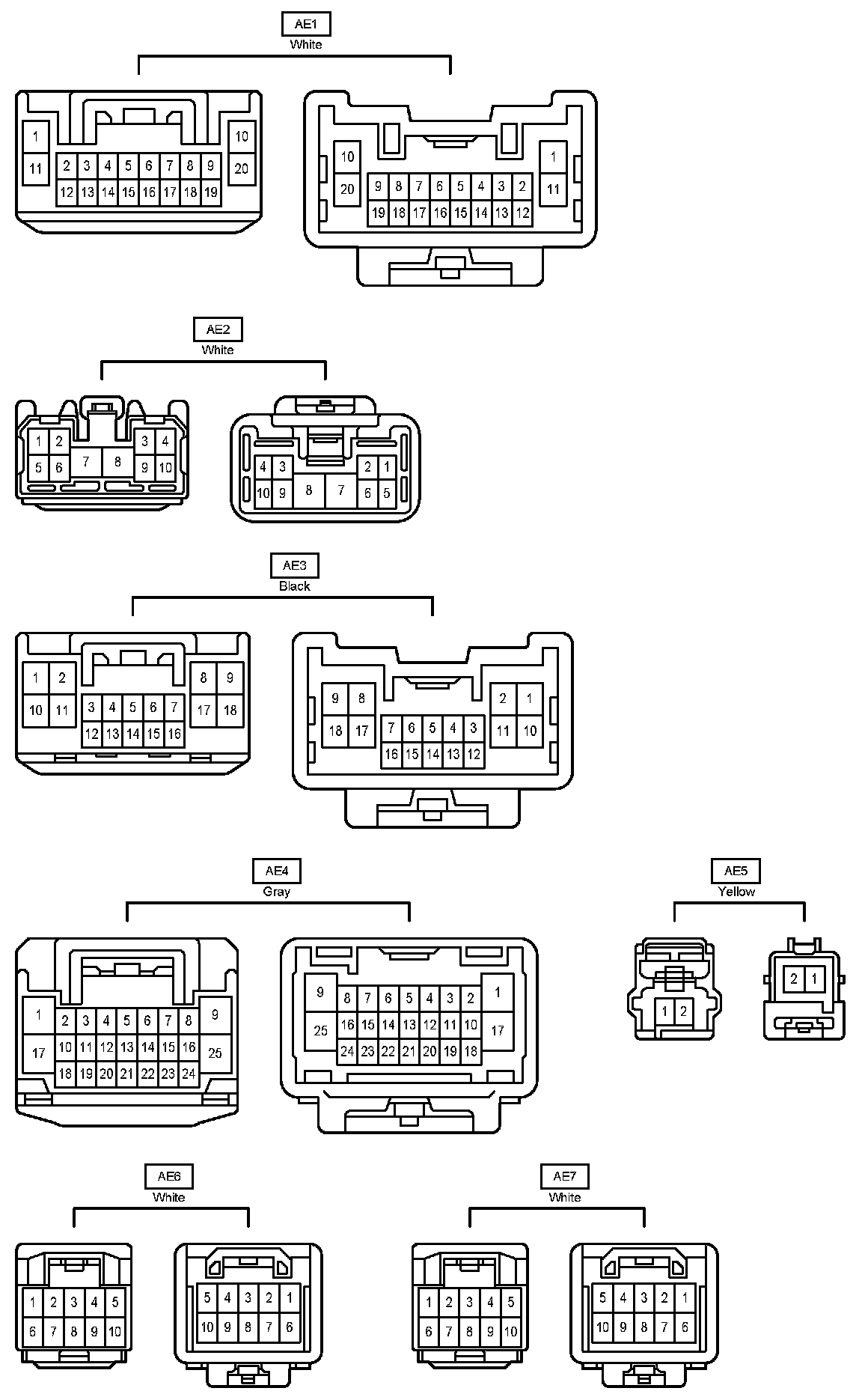

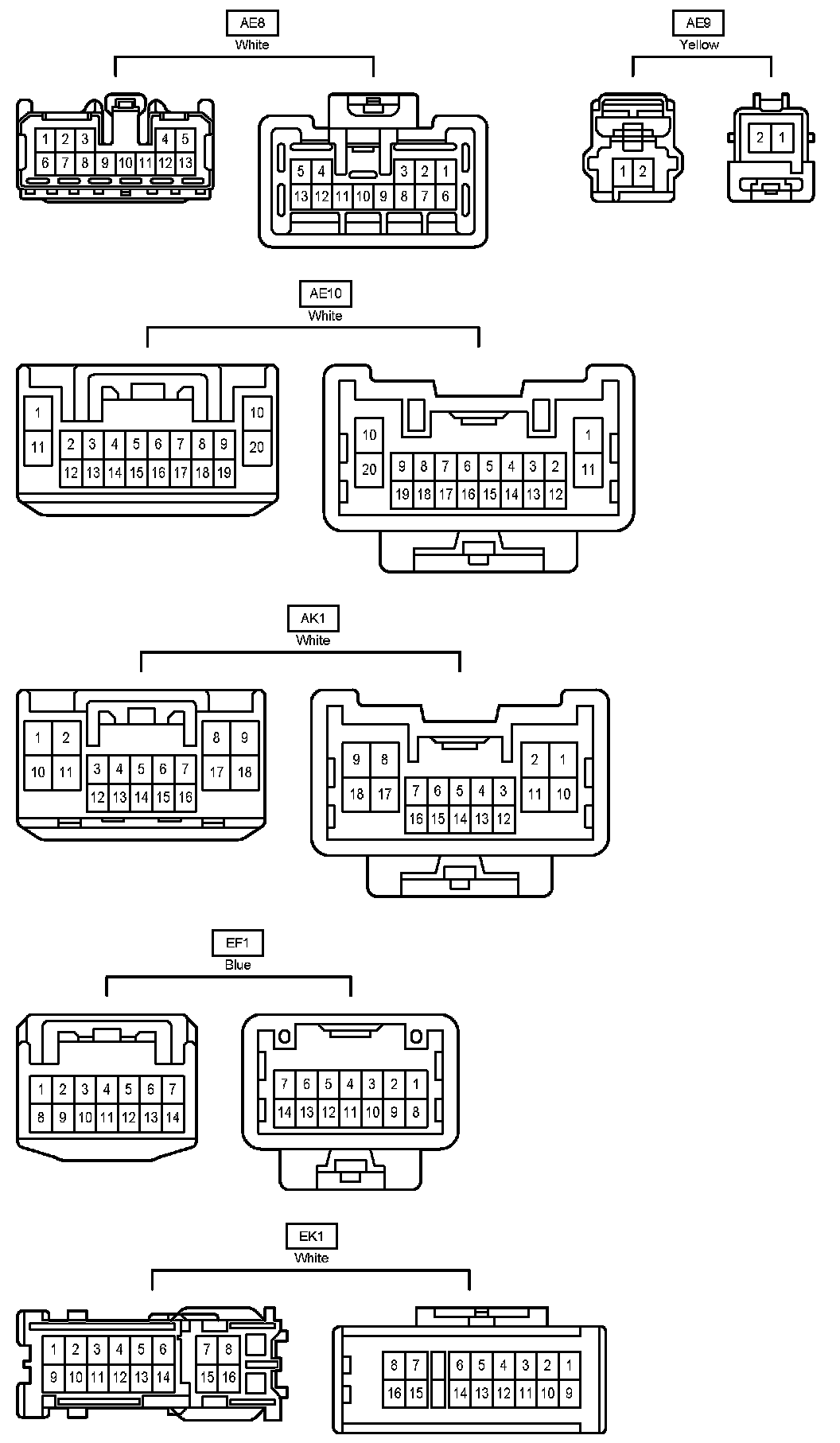

Connector Views:
Connector Views:
Connector Views:
Connector Views:
Connector Views:

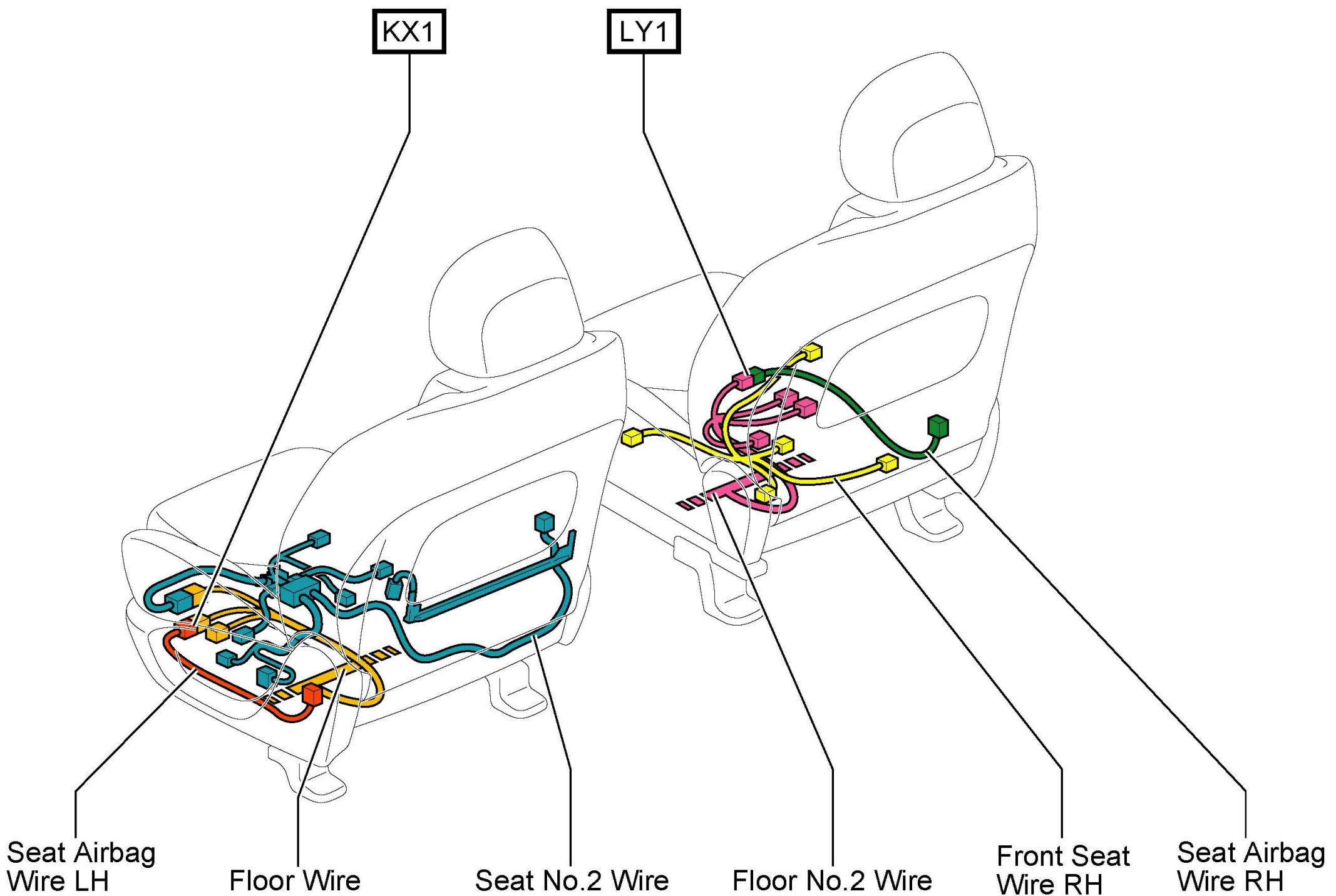

Wire And Wire In Seat:

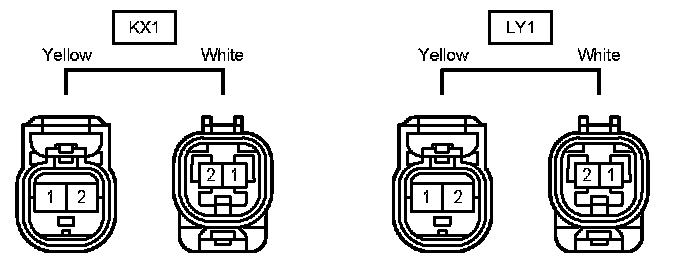

Connector Views:
