Removal

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

2. DRAIN ENGINE COOLANT Service and Repair

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

4. REMOVE RADIATOR ASSEMBLY
(a) Remove the radiator assembly Removal.
5. REMOVE FAN AND GENERATOR V BELT Removal

6. DISCONNECT COMPRESSOR WITH PULLEY ASSEMBLY

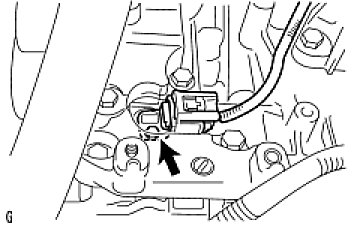

7. REMOVE CRANKSHAFT POSITION SENSOR






(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.
