Installation








2GR-FE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY






(a) Apply a light coat of engine oil to new 4 O-rings of the oil control valves.
(b) Install the O-rings to the 4 oil control valves.

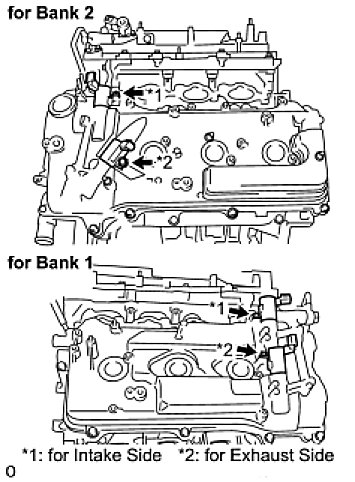

(c) Install the 4 oil control valves with the 4 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
NOTE: Make sure that the O-ring is not cracked or jammed.

(d) Connect the 4 oil control valve connectors.
2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation

3. INSTALL ENGINE ASSEMBLY
(a) Install the engine Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. CHECK FOR ENGINE OIL LEAKS
(a) Start the engine, and check that there are no oil leaks.
