Main Bearing Cap
Main Bearing CapsBottom Main Bolts

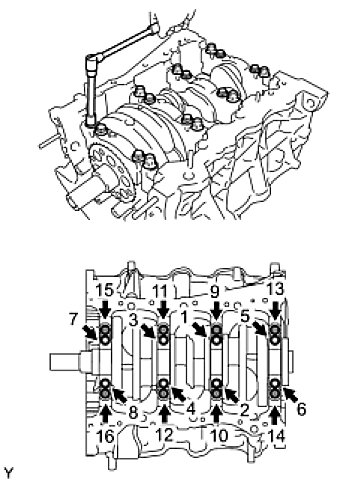

Step 1:
Torque: 61 Nm (622 kgf-cm, 45 ft-lbf) in illustrated sequence.
Step 2:

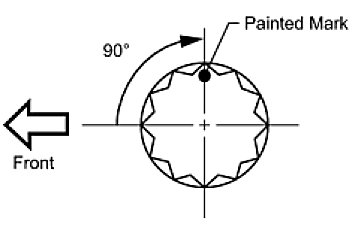

Tighten the bearing cap bolts another 90° in the order shown in step 1.

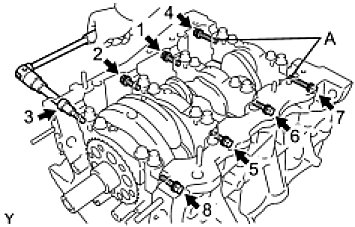

Side Main Bolts
Torque: 52 Nm (530 kgf-cm, 38 ft-lbf) in illustrated sequence.
Bolt length:
Bottom Main Bolts

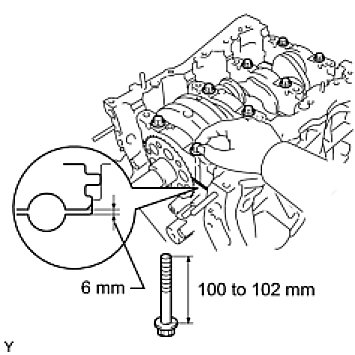

100.0 to 102.0 mm (3.937 to 4.016 in.)

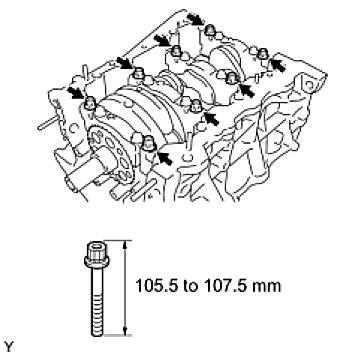

105.5 to 107.5 mm (4.154 to 4.232 in.)
Side Main Bolts
45 mm (1.77 in.) for bolt A
30 mm (1.18 in.) for except bolt A
