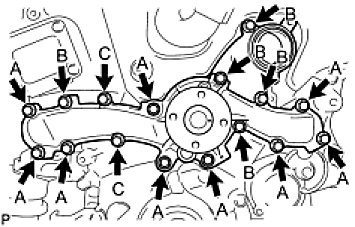

COOLING: WATER PUMP
Torque bolt A: 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque bolts B and C: 9.1 Nm (93 kgf-cm, 81 in-lbf)
