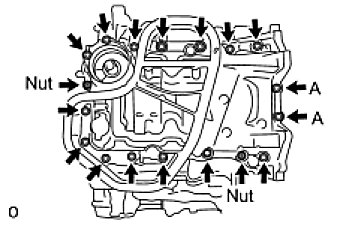

Oil Pan, Engine
Oil Pan, Engine
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
