Head Bolt
CYLINDER HEAD SET BOLT
Standard outside diameter:
10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum outside diameter:
10.70 mm (0.4213 in.)

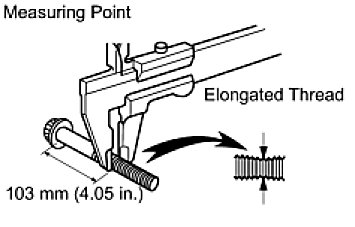

Measuring Point:
103 mm (4.05 in.)
Standard outside diameter:
10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum outside diameter:
10.70 mm (0.4213 in.)
Measuring Point:
103 mm (4.05 in.)
