Battery Current Sensor: Testing and Inspection

2GR-FE CHARGING: BATTERY CURRENT SENSOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT BATTERY CURRENT SENSOR ASSEMBLY






(a) Measure the resistance of the sensor.

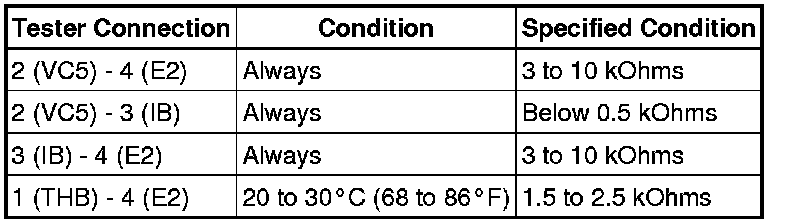

Standard resistance:

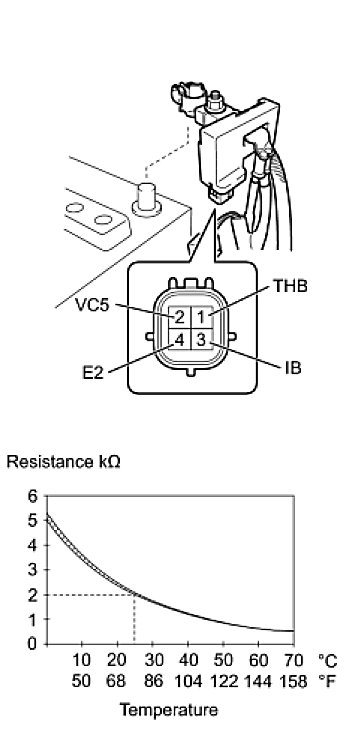

HINT: Tester connection 1 (THB) - 4 (E2):
As the temperature increases, the resistance decreases (see graph).
If the result is not as specified, replace the sensor assembly.
