Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER MODULE: REMOVAL

REMOVAL

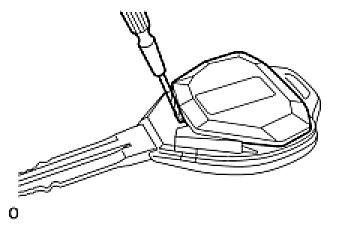

1. REMOVE TRANSMITTER HOUSING COVER
NOTE: Take extra care when handling these precision electronic components.

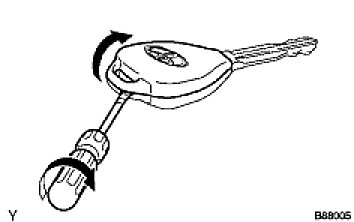

(a) Twist the screwdriver in the direction of the arrow mark in the illustration, and open the transmitter housing cover.
NOTE: Do not forcibly pry the cover.
HINT: Tape the screwdriver tip before use.

2. REMOVE DOOR CONTROL TRANSMITTER MODULE
