Control Module HVAC
Control Module HVAC

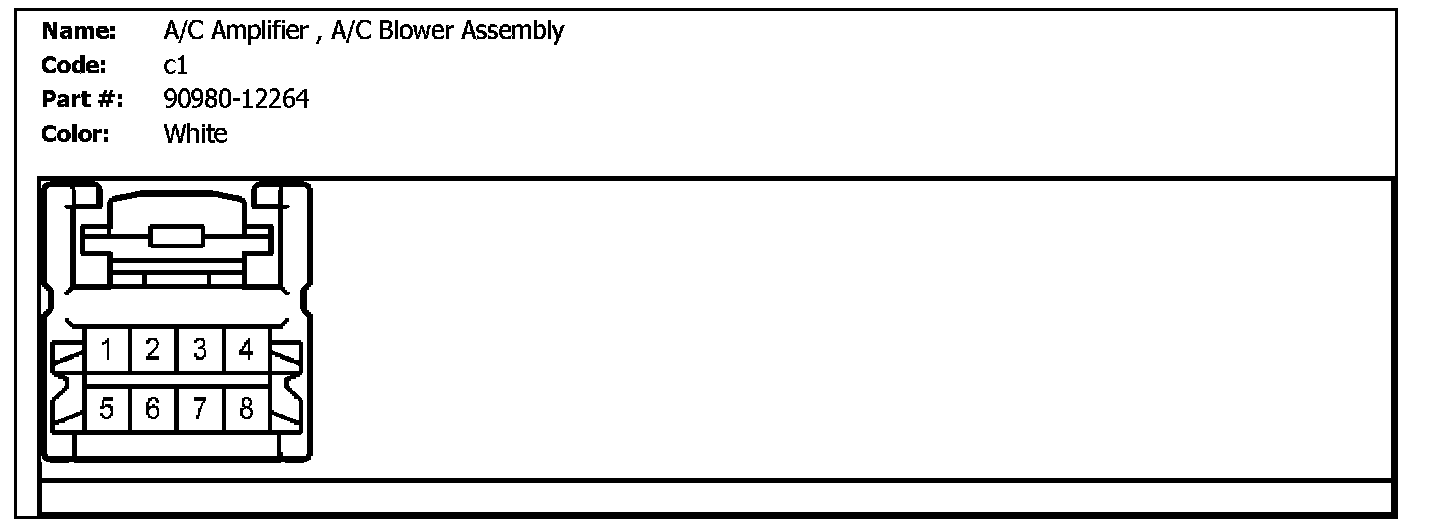

c1 (A/C Amplifier, A/C Blower Assembly):

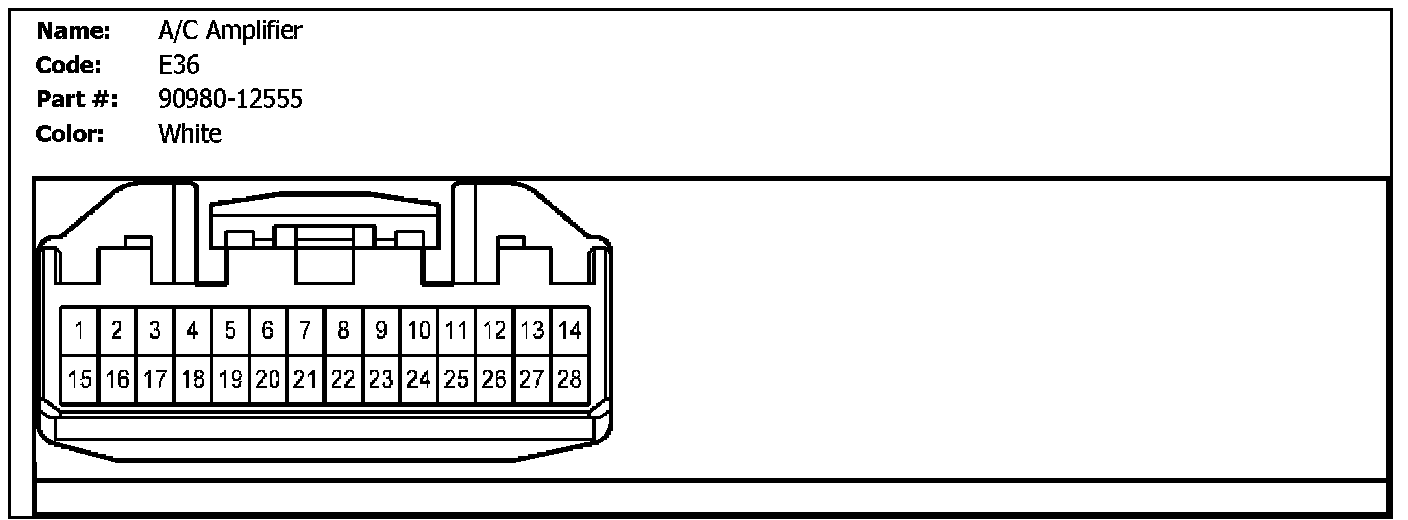

E36 (A/C Amplifier):
E37 (A/C Amplifier):
